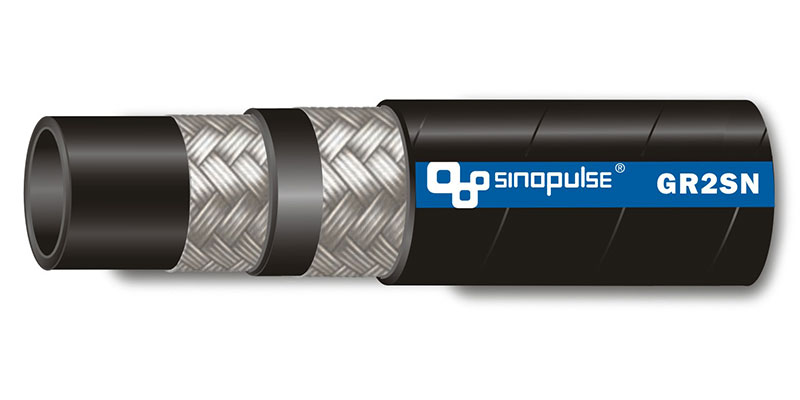

GR2SN

Inner Tube: oil resistant synthetic rubber.
Reinforcement: two braids of high-tensile steel wire.
Cover: weather- and oil-resistant synthetic rubber.PSI
Temperature Range: -40℃ to +100℃.
Main Applications: suitable for conveying Medium-high pressure of oil- or water-based hydraulic fluids.
Online Inquiry
Click Refresh Verification Code

Details

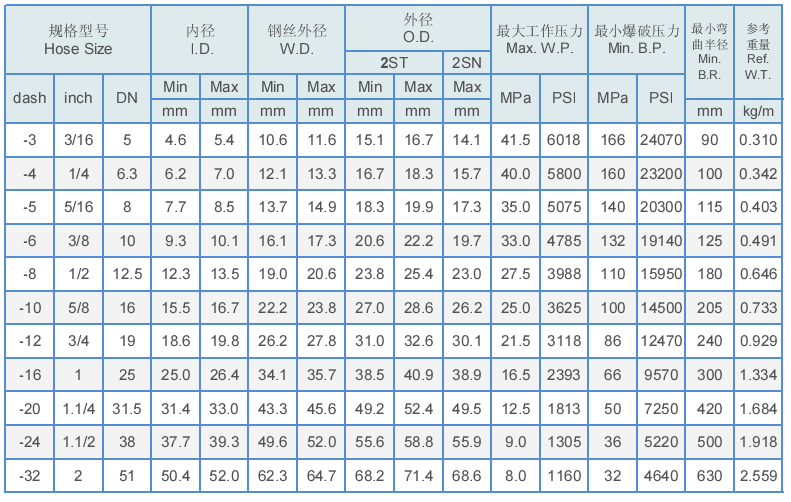

Standards: ISO 1436 2SN, EN 853 2SN or 2ST, SAE 100 R2S and excel R2A or AT.

Continuous Brand Layline Example:
SINOPULSE HYDRAULIC HOSE GR2SN-3 SAE 100R2S / EN853 2SN 3/16" (DN5) Max. W.P. 41.5MPa (6019PSI) -2Q11-
  • Previous: No Information
  • Next: GR2AT
