Crimping Machine

Crimping range:Φ6—Φ51mm
Max crimping pressure :400T
Scale accuracy:0.02mm
Rated pressure :31.5MPa
Pump displacement:5ml/rad (380V) 2.5ml/rad (220V)
Online Inquiry
Click Refresh Verification Code

Details

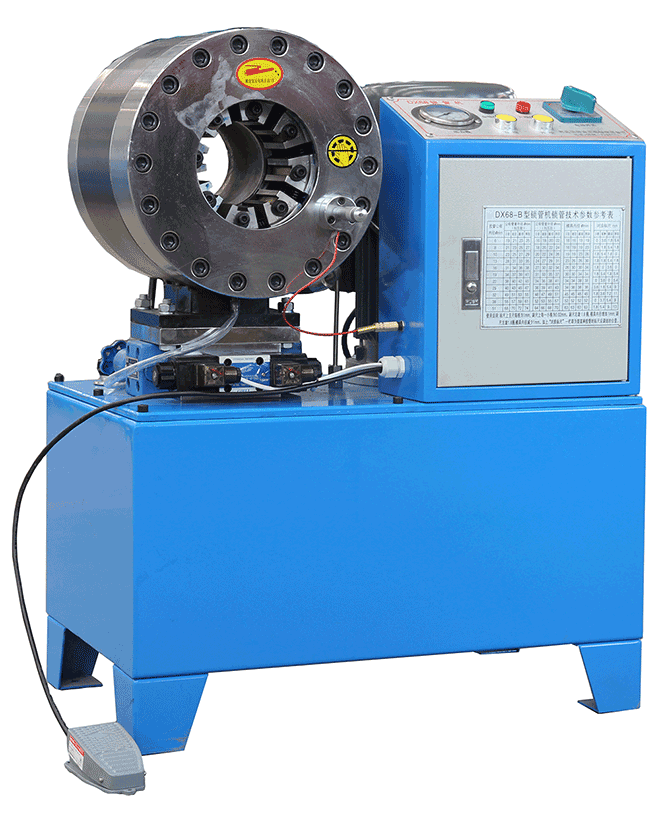

Crimping Machine DX68
Specification

Crimping range:Φ6—Φ51mm

Max crimping pressure :400T

Scale accuracy:0.02mm

Rated pressure :31.5MPa

Pump displacement:5ml/rad (380V)  2.5ml/rad (220V)

Size:670×490×780mm

Weight:260kg

Dies 10 sets:Φ16、Φ19、Φ23、Φ26、Φ30、Φ34、Φ38、Φ45、Φ52、Φ63
