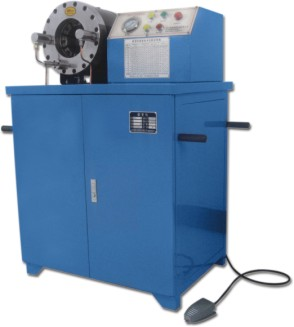

Crimping Machine DSG250B

Crimping range:Φ6—Φ51mm
Max crimping pressure:640T
Scale accuracy:0.02mm
Rated pressure:31.5MPa
Pump displacement:10ml/rad
Rotate speed:1440 r/min
Weight:270kg
Motor power:4kw
Online Inquiry
Click Refresh Verification Code

Details

Crimping Machine DSG250B
Specification

Crimping range:Φ6Φ51mm

Max crimping pressure640T

Scale accuracy:0.02mm

Rated pressure31.5MPa

Pump displacement:10ml/rad

Rotate speed1440 r/min

Weight:270kg

Motor power4kw

Size:850×450×1300mm

Dies 10 sets:Φ16Φ19Φ23Φ26Φ30Φ34Φ38Φ45Φ52Φ63
