GR1AT

Inner Tube: oil resistant synthetic rubber.
Reinforcement: one braid of high-tensile steel wire.
Cover: weather- and oil-resistant synthetic rubber.
Temperature Range: -40℃ to +100℃.
Main Applications: Used for conveying low-medium pressure of oil- or water-based hydraulic fluids.
Online Inquiry
Click Refresh Verification Code

Details

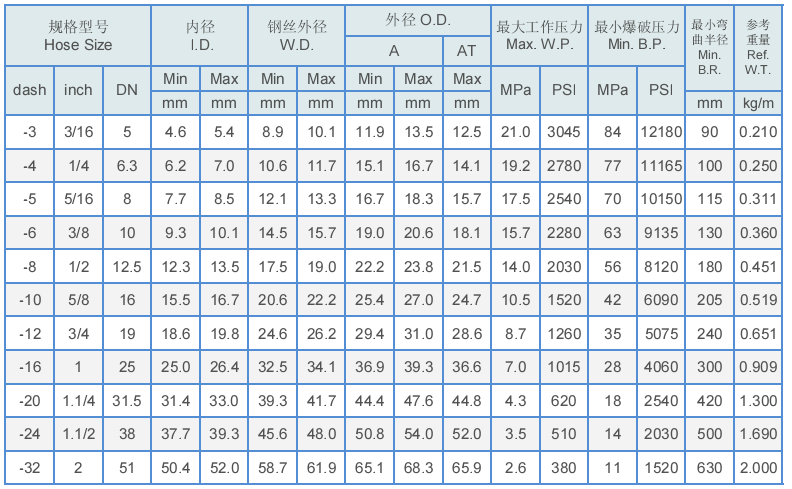

SAE100 R1AT hydraulic hose soecification:

Inner Tube: oil resistant synthetic rubber.
Reinforcement: one braid of high-tensile steel wire.
Cover: weather- and oil-resistant synthetic rubber.
Temperature Range: -40℃ to +100℃.
Main Applications: Used for conveying low-medium pressure of oil- or water-based hydraulic fluids.

Standards: ISO 1436 R1AT, SAE J517 100R1 type A or AT

Continuous Brand Layline Example:
SINOPULSE HYDRAULIC HOSE GR1AT-3 SAE 100R1AT 3/16" (DN5) Max. W.P. 21MPa (3045PSI) -2Q11-

Products Details Showing:
