Fuel Oil Hose
Fuel Oil Rubber Hose

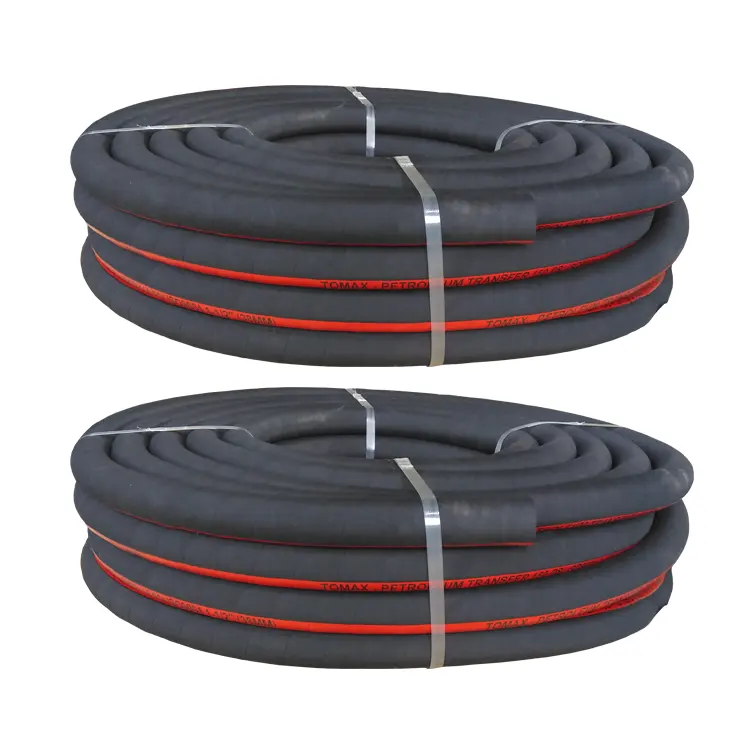

Fuel oil hose, also called fuel oil rubber hose, is a type of hose used to transfer fuel from one place to another. It is usually made of rubber or other flexible materials and is designed to withstand the pressure and temperature of the transferred fuel. Fuel oil rubber hoses are commonly used in automotive, marine, and industrial applications. They are also used to transfer fuel from tanks to pumps and from pumps to engines.
hydraulic hose Fuel oil Hose
Fuel Oil Hose application:
Fuel oil hose is used to transfer and deliver oil and petroleum products for home delivery and commercial and industrial service. It is also used in oil-refining and oil-processing plants, as well as in tank trucks, railcars, and ships. Fuel oil hose is designed to handle a wide range of petroleum-based fuels in the depot, dispenser, dock, engine fuel line, in-plant, and tank truck suction and discharge service.
Applications: fuel systems like gasoline, diesel fuel, lubricants, and other mineral oils, also suitable for loading and unloading tank cars, automobiles, oil refining, oil-related industries, etc.

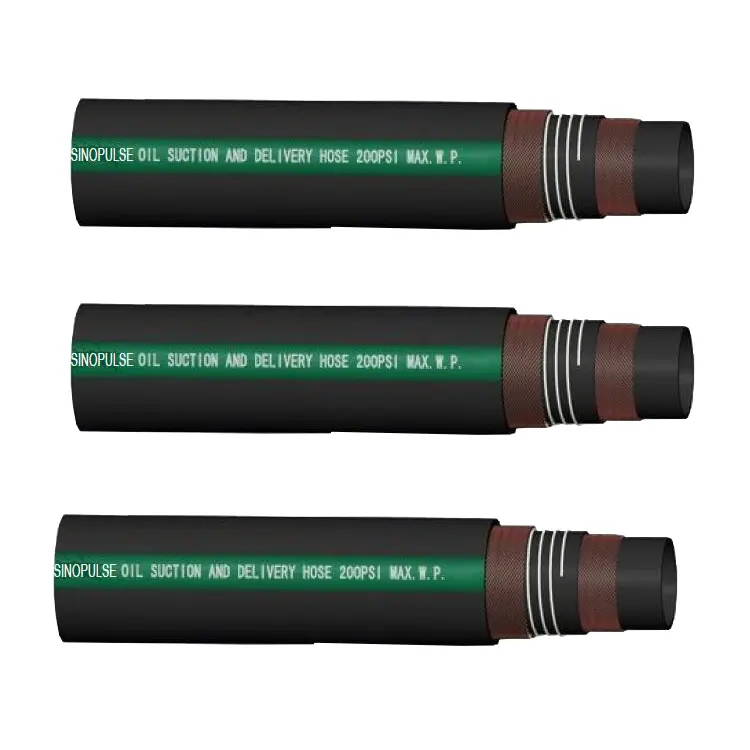

Tube: NBR synthetic rubber, oil and fuel resistant
Reinforcement: High tensile synthetic yarn.
Cover: black NEOPRENE rubber, oil, ozone, weather, and abrasion resistant.
Temperature: -40°C + 100°C
Details
1. Parameter of smooth and corrugated surfaces
ID (inch) | ID (mm) | Wall (mm) | W.P. (bar) | B.P. (bar) | Radius (mm) | Length Max. (m) | Weight (kg/m) |
3/16″ | 5 | 3,5 | 20 | 60 | 30 | 100 | 0.15 |
1/4″ | 6 | 3,5 | 20 | 60 | 35 | 100 | 0.19 |
5/16″ | 8 | 3.5 | 20 | 60 | 50 | 100 | 0.23 |
3/8″ | 10 | 3.5 | 20 | 60 | 60 | 100 | 0.28 |
1/2″ | 13 | 4,0 | 20 | 60 | 60 | 100 | 0.41 |
5/8″ | 16 | 4.0 | 20 | 60 | 90 | 50 | 0.51 |
3/4” | 19 | 4.5 | 20 | 60 | 110 | 50 | 0.77 |
1” | 25 | 5,0 | 8 | 60 | 130 | 50 | 0.89 |
2. Parameter of woven surfaces
ID (inch) | ID (mm) | Wall (mm) | W.P. (bar) | B.P. (bar) | Radius (mm) | Length Max. (m) | Weight (kg/m) |
1/4″ | 6 | 4.7 | 20 | 60 | 102 | 50 | 0.31 |
5/16″ | 8 | 4.7 | 20 | 60 | 114 | 50 | 0.32 |
3/8″ | 10 | 4.8 | 20 | 60 | 127 | 50 | 0.40 |
1/2″ | 13 | 5.0 | 20 | 60 | 178 | 50 | 0.55 |
5/8″ | 16 | 5.0 | 20 | 60 | 203 | 50 | 0.60 |
3/4” | 19 | 5.8 | 20 | 60 | 241 | 50 | 0.76 |
1” | 25 | 6.5 | 20 | 60 | 305 | 50 | 1.08 |
1-1/4” | 32 | 7.0 | 20 | 60 | 419 | 50 | 1.28 |
1-1/2” | 38 | 9.0 | 20 | 60 | 500 | 50 | 1.72 |
2” | 51 | 9.0 | 20 | 60 | 630 | 50 | 2.90 |
