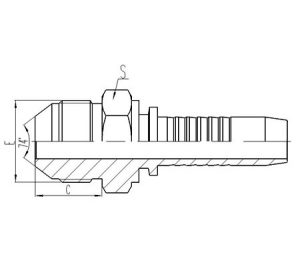

JIC MALE 74° CONE SEAL (16711)
JIC MALE 74° CONE SEAL (16711)
Material: carbon steel, stainless steel, brass;
Surface Treat: galvanize Yellow Zinc, Black Zinc, Cr6 free Zinc, and Nickel;
Application: widely used in the hydraulic and fluid conveying system of machinery, oilfield, mine, building, transportation, food, and other industries.
Products Specification:
|
|
E |
HOSE BORE |
DIMENSIONS |
||
|
PART NO.
|
THREAD E
|
DN
|
DASH
|
C
|
S
|
|
16711-04-04
|
7/16″X20
|
6
|
04
|
14
|
12
|
|
16711-05-04
|
1/2″X20
|
6
|
04
|
14
|
14
|
|
16711-05-05
|
1/2″X20
|
8
|
05
|
14
|
14
|
|
16711-06-04
|
9/16″X18
|
6
|
04
|
14
|
17
|
|
16711-06-05
|
9/16″X18
|
8
|
05
|
14
|
17
|
|
16711-06-06
|
9/16″X18
|
10
|
06
|
14
|
17
|
|
16711-08-06
|
3/4″X16
|
10
|
06
|
16.7
|
22
|
|
16711-08-08
|
3/4″X16
|
12
|
08
|
16.7
|
22
|
|
16711-10-06
|
7/8″X14
|
10
|
06
|
19.3
|
24
|
|
16711-10-08
|
7/8″X14
|
12
|
08
|
19.3
|
24
|
|
16711-10-10
|
7/8″X14
|
16
|
10
|
19.3
|
24
|
|
16711-12-08
|
1.1/16″ X12
|
12
|
08
|
22
|
30
|
|
16711-12-10
|
1.1/16″ X12
|
16
|
10
|
22
|
30
|
|
16711-12-12
|
1.1/16″ X12
|
20
|
12
|
22
|
30
|
|
16711-12-16
|
1.1/16″ X12
|
25
|
16
|
22
|
32
|
|
16711-14-10
|
1.3/16″ X12
|
16
|
10
|
22.5
|
32
|
|
16711-14-12
|
1.3/16″ X12
|
20
|
12
|
22.5
|
32
|
|
16711-16-12
|
1.5/16″ X12
|
20
|
12
|
23
|
36
|
|
16711-16-16
|
1.5/16″ X12
|
25
|
16
|
23
|
36
|
|
16711-20-16
|
1.5/8″X12
|
25
|
16
|
24.3
|
46
|
|
16711-20-20
|
1.5/8″X12
|
32
|
20
|
24.3
|
46
|
|
16711-24-20
|
1.7/8″X12
|
32
|
20
|
27.5
|
50
|
|
16711-24-24
|
1.7/8″X12
|
38
|
24
|
27.5
|
50
|
|
16711-32-32
|
2.1/2″X12
|
51
|
32
|
34
|
65
|
Note: 1. For use with braided hoses. 2. If used with spiral hoses, the hose fitting series number is 16712-xx-xx;
