PVC Air Hose

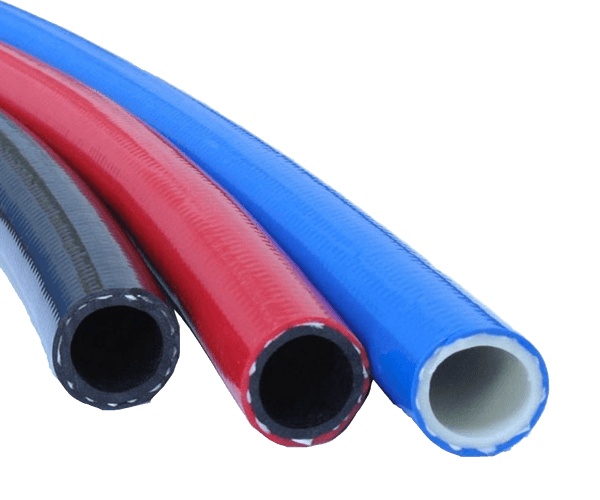

PVC Air Hoses are flexible, lightweight hoses made of polyvinyl chloride (PVC) and reinforced with a polyester yarn braid. They are used for air lines, compressors, and pneumatic tools in industrial, automotive, and home applications. PVC air hoses are resistant to abrasion, ozone, and UV rays and are available in a variety of colors and sizes.
Details:
Tube: PVC material
Reinforcement: 1ply or 2ply high tensile polyester braiding
Cover: PVC, black, red, yellow, blue.
PVC Air Hose Feature:
1. Non-toxic, no smell, no poison.
2. Light weight, good flexibility, bright color, smooth surface.
3. Good adaptability to hard weather conditions and minus pressure.
4. The hose can be produced according to customers’ requirements.
PVC air hoses are lightweight, flexible and resistant to abrasion, kinks, and weathering. They are also resistant to oil, chemicals, and UV rays. They are available in various colors and sizes and can be used for various applications, including air compressors, air tools, and air lines. They are also easy to store and transport.
| I.D. | O.D. | Max W.P. | B.P. | Weight | Standard Length | Volume | |||
| (inch) | (mm) | (mm) | (psi) | (bar) | (psi) | (bar) | (lbs/feet) | (feet) | m3 |
| 1/4″ | 6.35 | 12.06 | 300 | 20.68 | 870 | 60 | 0.08 | 500 | 0.024 |
| 5/16″ | 7.87 | 14 | 300 | 20.68 | 870 | 60 | 0.95 | 500 | 0.026 |
| 3/8″ | 9.5 | 15.24 | 300 | 20.68 | 870 | 60 | 0.11 | 500 | 0.041 |
| 1/2″ | 12.7 | 19.05 | 300 | 20.68 | 870 | 60 | 0.166 | 500 | 0.029 |
| 5/8″ | 15.9 | 22.86 | 300 | 20.68 | 870 | 60 | 0.266 | 300 | 0.04 |
| 3/4″ | 19.05 | 26.9 | 300 | 20.68 | 870 | 60 | 0.325 | 300 | 0.056 |
| 1″ | 25.4 | 33.78 | 218 | 15 | 653 | 45 | 0.408 | 300 | 0.094 |
| 1-1/4″ | 31.75 | 44 | 218 | 15 | 653 | 45 | 0.658 | 300 | 0.166 |
| 1-1/2″ | 38.1 | 50 | 218 | 15 | 653 | 45 | 0.762 | 300 | 0.271 |
| 2″ | 50.8 | 64 | 145 | 10 | 435 | 30 | 1.151 | 300 | 0.375 |
Application
PVC air hoses are widely used for pneumatic tools, pneumatic washing apparatus, compressors, engine components, machine service, civil engineering equipment, etc.
