SAE 100 R6 Hydraulic Hose
SAE 100 R6 hydraulic hose is a textile-reinforced hose with an inner layer of oil-resistant synthetic rubber and an outer layer of black abrasion-resistant rubber. This hose is suitable for hydraulic oil, liquid petroleum, and water-based liquid transmission and has the characteristics of oil resistance, heat resistance, wear resistance, and aging resistance, and resistant to abrasion, corrosion, weathering, ozone, cutting, aging and sunlight.
100R6 Hydraulic Hose | 100R6 | ISO 4079 Type 1 | DIN EN854 Type 1TE | SAE J517 Type SAE 100R6 Medium Pressure Textile Braid Hydraulic Hose
Hydraulic Oil Return Hose for Delivery of Oil, Diesel and Red Diesel.

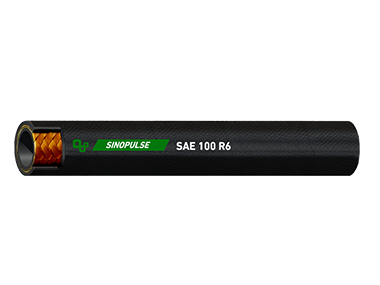

SAE 100 R6 Hose Structure:
Inner Tube: oil-resistant synthetic rubber.
Reinforcement: one layer of Braided Fiber Reinforcement, making the hose lightweight and flexible.
Cover: Abrasion and oil-resistant synthetic rubber
Feature
Temperature Range: -40℃ to +100℃.( -40°F to +212°F)
Main Applications: Low-pressure lines, return lines, drain lines.
Inside Diameter: 3/16″ to 1″
Burst Pressure: 700psi – 2000psi
Working Pressure: 180psi – 500psi
Applicable Standards: ISO 4079 R6, EN 854 R6, SAE J517 100R6
Suitable fitting: Can be used with available SAE 100R6 field-attachable fittings – Ferrule: No-skive Type PUSH-ON-R6/1TE. Insert: PUSH-ON-R6/1TE (X: Can choose)
Certificate: MSHA & BV & GOST & IATF 16949 & ISO 9001 & ISO 14001 & ISO 45001 & DAKKS & SGS & MA & DEKRA Approved
Industry: Agriculture, Chemical, Defence Force, General Purpose Industrial, HVAC, Industrial and Power, Offshore, Oil & Gas, Onshore, Petroleum, Transportation, Water Treatment
Applications: Hydraulic low pressure, Return & drain oil lines.
The specification of the SAE 100 R6 textile-reinforced hydraulic hose
| Part No. | I.D. | O.D. | W.P | B.P | B.R | W.T | |||
| Dash | Inch | mm | mm | MPa | PSI | MPa | PSI | mm | kg/m |
| SAE100R6-03 | 3/16″ SAE 100R6 General Purpose Hose | 4.8 | 11.0 | 3.5 | 507.5 | 14 | 2030 | 50 | 0.111 |
| SAE100R6-04 | 1/4″ SAE 100R6 General Purpose Hose | 6.4 | 12.5 | 2.8 | 406 | 11.2 | 1624 | 65 | 0.132 |
| SAE100R6-05 | 5/16″ SAE 100R6 General Purpose Hose | 7.9 | 14.0 | 2.8 | 406 | 11.2 | 1624 | 75 | 0.153 |
| SAE100R6-06 | 3/8″ SAE 100R6 General Purpose Hose | 9.5 | 15.7 | 2.8 | 406 | 11.2 | 1624 | 75 | 0.179 |
| SAE 100R6-08 | 1/2″ SAE 100R6 General Purpose Hose | 12.7 | 19.5 | 2.8 | 406 | 11.2 | 1624 | 100 | 0.249 |
| SAE100R6-10 | 5/8″ SAE 100R6 General Purpose Hose | 15.9 | 22.9 | 2.4 | 348 | 9.6 | 1392 | 125 | 0.308 |
| SAE100R6-12 | 3/4″ SAE 100R6 General Purpose Hose | 19.1 | 26.0 | 2.1 | 304.5 | 8.4 | 1218 | 150 | 0.357 |
Raw Material:
Imported rubber material Vietnam and Thailand
High tensile strength 2750Mpa steel wire from China’s first-class factory
Powerful, safe and stable hydraulic hose products
Good dispersibility, high bearing pressure and superior pulse performance.
Excellent oil resistance, heat resistance and aging resistance.
Excellent bending resistance and fatigue resistance
Factory Workshop:
Sinopulse is a 100% manufacturer of hydraulic hoses and industrial hoses, including all oilfields, agriculture, transportation, construction, mining, and forestry.
Daily output 500,000 meters of hoses, workshop covering 40,000 m²
40 production lines, involving high-speed joint machines, braiding machines, high-speed spiral machines, Italy VP automatic industrial machines, and Complete series Laboratory Testing Equipment
120 Skilled workers, 6 Engineers with 2 technical counselors from famous international companies,2 QC departments, and 2 warehouse managers are fall of our lovely people.
50 Sales and three groups of logistics specialists serve our clients from Italy, Germany, Uk, Spain, the USA, Canada, Brazil, Argentina, Panama, Peru, Chile, Viet Nam， Indonesia, Australia, Romania
Laboratory:
Our factory introduces a full range of laboratory testing equipment. It has advanced laboratory capabilities to conduct product quality testing and research and development work to ensure stable and excellent product quality.
After purchasing raw materials, we test each batch to ensure they meet our product’s technical requirements.
After production, we test each hose, its working and burst pressure, and conduct a pulse test for each order to ensure that it is 100% qualified after leaving the factory.
We strive to provide our customers with top-notch hoses, doing everything we can to ensure their quality.
“Let our end users feel comfortable in use and safe in driving!” is our common goal.
Product packaging:
1. When packing hydraulic hoses, cartons or wooden boxes according to customer requirements.
2. We will pack the hose after finishing the hose production.
3. Generally, woven bags and plastic films are used for packaging.
4. Special packaging can be provided according to customer requirements. Special packaging is a request of Edible ACC Ording customers.
GR6 (SAE 100 R6)

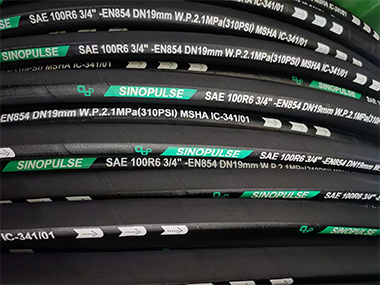

Continuous Brand Layline Example:
| SINOPULSE HYDRAULIC HOSE GR6-3 SAE J517 100R6 3/16″ (DN5) Max. W.P. 3.5MPa (510PSI) -xxxx- |
Find a trusted SAE 100 R6 hose factory. Any requirements and problems can ask us at any time.
Hot Products
What is sae100r6?
SAE100r6 textile reinforced hydraulic hose is suitable for delivering petroleum- or water-based hydraulic fluids and it is mainly used in low-pressure conditions. It is composed of three parts: tube, reinforcement and cover. The tube is made from high-quality black synthetic rubber, which is resistant to oil, abrasion and corrosion. Therefore, the hose is widely used in the delivery of petroleum or water-based hydraulic fluids. The reinforcement is made from one layer of braided textile, making it widely used in low-pressure applications. The cover is made from high-quality synthetic rubber, which is resistant to abrasion, corrosion, weather, ozone, cut, aging and sunlight. The hose has longer service life as a result.
How many HP does R6-06 have?
The inner diameter of the R6-06 hose is 3/8″, the working pressure is 300 PSI, and the burst pressure is 1160PSI.
What is SAE 100 r6 hydraulic rubber hose?
SAE 100 R6 hose refers to a hydraulic hose defined by the SAE (Society of Automotive Engineers) 100 R6 specification. SAE100R6 hose is made as per the specification SAE type 100 R6. Hose reinforcement is synthetic textile braid and recommended for using on low pressure and return lines.
What is sae100r6 hydraulic rubber hose?
SAE 100R6 Textile Braided Hydraulic Hose excels in low pressure conditions, especially where tight routing is critical. Black nitrile tubing is very compatible with petroleum based hydraulic fluids in temperatures ranging from -40 to 100°C. Neoprene cover protects internal components from ozone, weather, oils and abrasion. Fiber reinforcement gives low pressure hydraulic hose great flexibility to fit into tight work spaces.
Where can sae100r6 hose apply?
SAE100R6 hose is not intended for use in brake applications. Strictly intended for use in low pressure, textile reinforced applications such as low operating pressure conditions including return and suction lines in non-brake applications, power steering return hoses, lube oil lines and air lines.
How is the SAE100 R6 hose designed?
The hose itself is designed with a chlorosulfonated polyethylene outer layer, an acrylic tube, and is reinforced by one layer of textile braid.
What is sae100r6 hose?
SAE100R6 Textile Reinforced Hydraulic Hose is suitable for petroleum and water-based hydraulic oils. It is mainly used under low pressure conditions. It consists of three parts: tube, reinforcement layer and outer layer. The tube is high-quality black synthetic rubber. Therefore, it is oil-resistant, abrasion-resistant and corrosion-resistant. Therefore, this hose is widely used to transport petroleum and water-based hydraulic oils. And the reinforcement layer is a textile braided layer. This makes the hose more flexible and lighter in weight. The outer layer is made of high-quality synthetic rubber, which is resistant to abrasion, corrosion, weathering, ozone, cutting, aging and sunlight. Therefore, the service life of the hose is longer.
What is the pressure rating for a 100 R6?
The pressure rating for a 100 R6 hydraulic hose varies based on its diameter, but generally ranges from about 508 psi (smaller diameter) to 174psi (larger diameter). It is important to consult the manufacturer’s specifications for the exact pressure rating that corresponds to a specific hose size.
What is sae 100 r6 hose?
SAE 100 R6 hydraulic hose is suitable for petroleum-based hydraulic oil and it is similar to SAE 100 R3 hydraulic hose in structure. It is also composed of three parts: tube, reinforcement and cover. It is composed of three parts: tube, reinforcement and cover. Tube is made from oil resistant synthetic rubber, making hose work well in delivering oils. Reinforcement is made from one layer of proper fiber braid, making hose lightweight and have solid structure. Cover is made from oil and weather resistant synthetic rubber, making hose have long service life.
Can SAE 100 R6 hose deliver fuel oil?
Of course, SAE 100R6 hydraulic hose is a black, long extruded hose with a smooth tube and a smooth abrasion, weather and oil resistant outer layer, reinforced with a high-strength synthetic textile layer. This hose is designed for low-pressure delivery of hydraulic fluid, air, water, oil and petroleum products with an aromatic content of not more than 40%.
What is SAE 100 R6 textile reinforced hydraulic hose ？
SAE 100 R6 textile reinforced hydraulic hose is suitable for delivering petroleum or water-based hydraulic fluids and it is mainly used in low pressure conditions. It is composed of three parts: tube, reinforcement and cover. The tube is made from high quality black synthetic rubber, which is resistant to oil, abrasion and corrosion. Therefore, the hose is widely used in the delivery of petroleum or water-based hydraulic fluids. The reinforcement is made from one layer of braided textile, making it widely used in low pressure applications. The cover is made from high quality synthetic rubber, which is resistant to abrasion, corrosion, weather, ozone, cut, aging and sunlight. The hose has longer service life as a result.
Is the SAE 100 R6 hose made of rubber?
The flexible hose conforming to the SAE 100 R6 standard is a rubber low pressure hydraulic hose with a fabric braid. Base layer: black; oil resistant synthetic rubber. Cover layer: black; synthetic rubber, resistant to oil, ozone, water and weather. Reinforcement: one high tensile fabric braid. Operating temperature: continuous operation from – 40°C to + 100°C with peaks up to 125°C (hydraulic oils, synthetic oils and gasoline derived oils). Water based hydraulic oils (water/glycol, water/oil emulsions) operate from – 40°C to + 70°C. Applications: Hydraulic systems using gasoline derived synthetic oils, water based oils, lubricants, hydrocarbons, flammable liquids. Particularly recommended for “push-in” applications, widely used for pumping and delivery of hydraulic oils, mineral oils and fuels.
