GR2SN ( SAE 100R2AT / 2SN ) Hydraulic Hose

SAE 100R2AT

Inner Tube: oil resistant synthetic rubber.
Reinforcement: two braids of high-tensile steel wire.
Cover: weather- and oil-resistant synthetic rubber.
Temperature Range: -40℃ to +100℃
Main Applications: Used for conveying Medium-high pressure of oil- or water-based hydraulic fluids.

Standards: ISO 1436 R2AT, SAE J517 100 R2 type A or AT

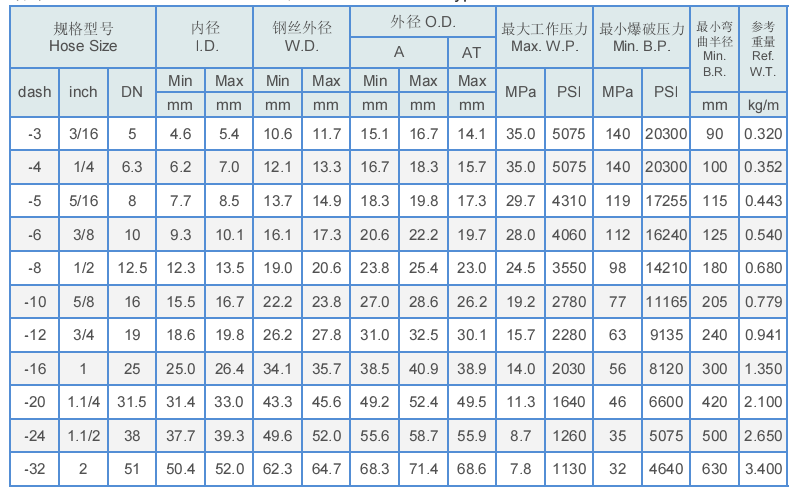

SAE 100 R2

Continuous Brand Layline Example:
SINOPULSE HYDRAULIC HOSE GR2AT-3 SAE 100R2AT 3/16″ (DN5) Max. W.P.35MPa (5075PSI) -2Q11-
