SAE FEMALE 90°CONE SEAT(27811)
SAE FEMALE 90°CONE SEAT(27811)
Material: carbon steel, stainless steel, brass;
Surface Treat: galvanize Yellow Zinc, Black Zinc, Cr6 free Zinc, and Nickel;
Application: widely used in the hydraulic and fluid conveying system of machinery, oilfield, mine, building, transportation, food, and other industries.
|
PART NO. |
THREAD E |
HOSE BORE |

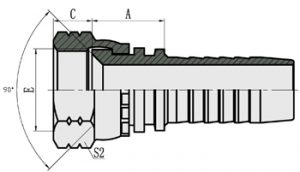

DIMENSIONS |
|||
|
DN |
DASH |
A |
C |
S2 |
||
|
27811-04-03 |
7/16″*20 |
5 |
03 |
14 |
9 |
15 |
|
27811-04-04 |
7/16″*20 |
6 |
04 |
15 |
9 |
15 |
|
27811-05-05 |
1/2″*20 |
8 |
05 |
15.5 |
9.5 |
17 |
|
27811-06-04 |
5/8″*18 |
6 |
04 |
17 |
11.3 |
22 |
|
27811-06-05 |
5/8″*18 |
6 |
05 |
17 |
11.3 |
22 |
|
27811-06-06 |
5/8″*18 |
10 |
06 |
17 |
11.3 |
22 |
|
27811-08-08 |
3/4″*16 |
12 |
08 |
18 |
11 |
24 |
|
27811-10-08 |
7/8″*14 |
12 |
08 |
18.5 |
13 |
27 |
|
27811-10-10 |
7/8″*14 |
16 |
10 |
20 |
13 |
27 |
|
27811-12-12 |
1.1/16″ *14 |
20 |
12 |
21.5 |
14.3 |
32 |
| Note:1.For use with braided hoses. 2. If used with spiral hoses, the hose fitting Number is 27812-xx-xx | ||||||
