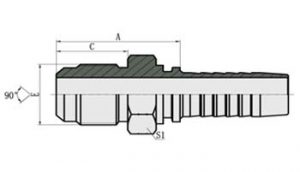

SAE MALE 90°CONE (17811)
SAE MALE 90°CONE (17811)

Material: carbon steel, stainless steel, brass;
Surface Treat: galvanize Yellow Zinc, Black Zinc, Cr6 free Zinc, and Nickel;
Application: widely used in the hydraulic and fluid conveying system of machinery, oilfield, mine, building, transportation, food, and other industries.
PART NO. | THREAD E | HOSE BORE | DIMENSIONS | |||
DN | DASH | A | C | S1 | ||
17811-04-04 | 7/16*20 | 6 | 04 | 25.5 | 12.7 | 12 |
17811-05-05 | 1/2“*20 | 8 | 05 | 27 | 14.2 | 14 |
17811-06-06 | 5/8“*18 | 10 | 06 | 28.5 | 15.7 | 17 |
17811-08-08 | 3/4″*16 | 12 | 08 | 34 | 19 | 22 |
17811-10-10 | 7/8″*14 | 16 | 10 | 38.5 | 22.4 | 24 |
17811-12-12 | 1.1/16″*14 | 20 | 12 | 43.5 | 25.4 | 30 |
Note: 1. For use with braided hoses. 2. If used with spiral hoses, the hose fitting number is 17812-xx-xx |
