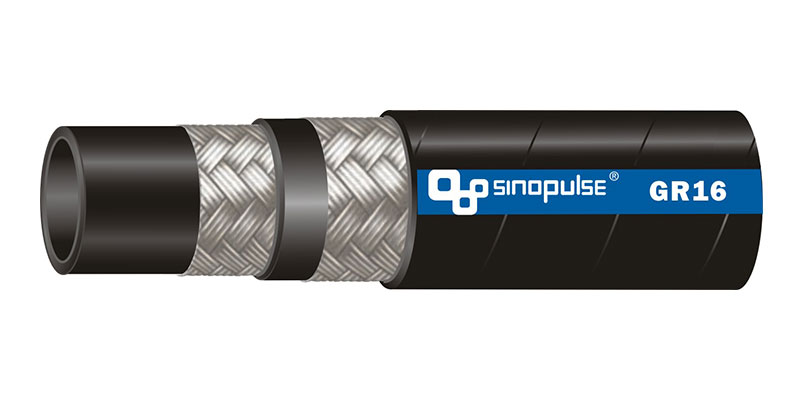

GR16

Inner Tube: oil resistant synthetic rubber.
Reinforcement: two braids of high-tensile steel wire
Cover: weather- and oil-resistant synthetic rubber.
Temperature Range: -40℃ to +100℃.
Main Applications: highpessure hydraulic applications and to replace 100R2 where higher pressures and a more flexible hose is required.
Online Inquiry

Details

Applicable Standards: ISO 11237 R16, SAE J517 100R16

Continuous Brand Layline Example:
SINOPULSE HYDRAULIC HOSE GR16-4 SAE J517 100R16 1/4" (DN6.3) Max. W.P. 35MPa (5075PSI) -2Q11-

Find trusted hose factory. Any requirements and problems can ask us at any time.
