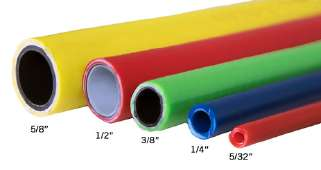

Tubo de freno de aire Sae J844 de múltiples capas
Tubo de freno de aire Sae J844 de múltiples capas
CONSTRUCCIÓN:
Type A – Single-wall extruded Nylon (polyamide)
Type B – Nylon (polyamide) core, fiber reinforcement, Nylon (polyamide) cover/sheath
Type B– Nylon (polyamide) core, muliply fiber reinforcement, Nylon (polyamide) cover/sheath
TEMPERATURE: -40°C to +93°C
| Código | Tamaño | sobredosis | IDENTIFICACIÓN | Espesor de la pared | Presión de ruptura | Radio de curvatura | Peso | |
| pulgada | mm | mm | mm | psi | bar | mm | kg | |
| SAE J844-C-6 | 3/8" | 9.5 | 6.36 | 1.6 | 1400 | 96.5 | 38.1 | 5.98 |
| SAE J844-C-9 | 1/2" | 12.7 | 9.56 | 1.6 | 950 | 65.5 | 50.8 | 8.67 |
| SAE J844-C-11 | 5/8" | 15.9 | 11.22 | 2.3 | 900 | 62.1 | 63.5 | 7.79 |
| SAE J844-C-14 | 3/4" | 19.1 | 14.42 | 2.3 | 800 | 55.2 | 76.2 | 9.56 |
