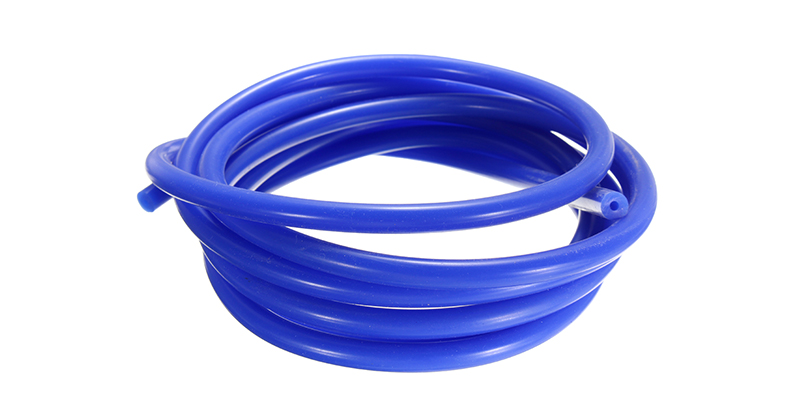

VACUUM BRAKE HOSE
VACUUM BRAKE HOSE
SAE J1403 Vacuum Hose
Working temperature range -40 C ~+100 C
| Hose Type Dash | I.D (mm) | O.D (mm) | Wall Thickness (mm) | Wall Diff Max (Bar) | Vacuum Degree (Max Mpa) | Burst pressure (Mini mpa) |
| 1 | 8.0ยฑ0.2 | 14.0ยฑ0.4 | 3 | 0.3 | >66.7 | >2.4 |
| 2 | 9.0ยฑ0.2 | 17.0ยฑ0.4 | 4 | 0.3 | >66.7 | >2.4 |
| 3 | 10.0ยฑ0.2 | 17.0ยฑ0.3 | 3.5 | 0.3 | >66.7 | >2.4 |
| 4 | 11.0ยฑ0.4 | 19.0ยฑ0.4 | 4 | 0.3 | >66.7 | >2.4 |
| 5 | 12.0ยฑ0.4 | 19.0ยฑ0.4 | 3.5 | 0.3 | >66.7 | >2.4 |
| 6 | 16.0ยฑ0.5 | 24.0ยฑ0.5 | 4 | 0.4 | >66.7 | >2.4 |
