SAE 100R8/EN 855 R8 Hydraulic Hose

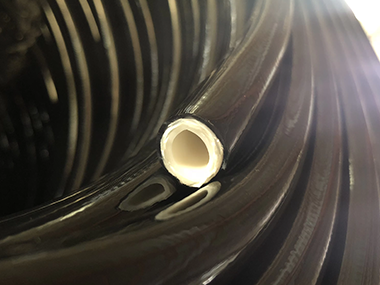

SAE 100 R8 Thermoplastic Hose
SAE 100 R8 thermoplastic hydraulic hose is suitable for conveying synthetic, petroleum or water-based hydraulic fluids, mainly for high pressure applications, with an operating temperature range of -40°C to +100°C. It consists of three parts: the tube body, the reinforcement and the cover. The tube is made of high quality hydraulic fluid resistant thermoplastic, making the hose widely used for conveying hydraulic fluids. The reinforcement material is made of suitable synthetic fibers. The outer layer is made of weather and hydraulic fluid resistant thermoplastic, giving the hose a longer service life. Sinopulse is available in single, double and non-conductive lines

SAE 100R8 hose has good wear, aging, and corrosion resistance, can withstand high pressure and high-frequency vibration, and has a long service life. It is commonly used in applications requiring pressure, high flow, and high-temperature performance, such as agriculture, construction, industry, and aviation.
SAE 100R8 hose is commonly used on machines that require high-pressure hydraulic transmission, such as excavators, milling machines, injection molding machines, presses, drilling rigs, etc. In addition, the SAE 100R8 hose can be used in aerospace and automotive industry applications such as aircraft hydraulic systems, automotive brake systems, etc. In these machines and systems, SAE 100R8 hoses are commonly used to transmit media such as hydraulic oil, hydraulic fluid, fuel, and air for high-pressure hydraulic transmission and control.

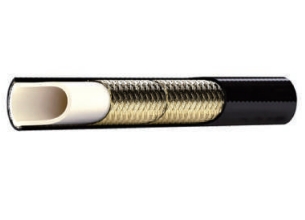

SAE100 R8 Structure:
Inner Rubber: High-quality hydraulic fluid-resistant thermoplastic, hydraulic oil, air and water based fluids resistant
Reinforcement: Two High Tensile Synthetic Fibers
Cover: High quality thermoplastics or nylon materials resistant to weather and hydraulic fluids, Abrasion, ozone, and weather resistant
Feature
Working Temperature Range: -40°C to +100°C (-40°F to +212°F), -40°C to +70°C for water-based fluids.
Working pressure range: 1450 psi to 5133 psi (100bar to 354bar)
Inside diameter range: 1/8″ to 1″
Pressure grade: high
Safety factor: 4:1
Fitting: Thermoplastic Hose Ends (Crimp or Swage-On); Standard or Braided Couplings; Reduced OD uses the same crimp fittings as SAE100R7 hose.
Compatible Competitor SAE 100 R8 Thermoplastic Hydraulic Hose: Weatherhead H336, Aeroquip FC374, Synflex 3800, Parker’s 520N/528N
Application: high-pressure hydraulic lines, petroleum, lubrication, gas, synthetic-based fluids, and solvents at medium pressure. Suitable for agricultural brake lines, forklifts, aerial work platforms, scissor lifts, and some industrial gases.
Advantage
Abrasion, ozone, and weather resistant synthetic polyurethane
Two fiber braid reinforcement
Excellent kick resistance;
Conduct electricity and Non-Conductive to choose
Tight bend radius;
Light weight.
The specification of the SAE 100 R8/DIN EN855 Hydraulic Hose
Part No. | I.D. | O.D. | W.P | B.P | B.R | W.T | |||
Dash | Inch | mm | mm | MPa | PSI | MPa | PSI | mm | kg/m |
SAE100R8-02 | 1/8″ | 3.3 | 10.2 | 34.5 | 5003 psi | 138 | 20012 | 20 | 0.090 |
SAE100R8-03 | 3/16″ | 4.8 | 13.1 | 34.5 | 5003 psi | 138 | 20012 | 40 | 0.120 |
SAE100R8-04 | 1/4″ | 6.4 | 15.9 | 34.5 | 5003 psi | 138 | 20012 | 50 | 0.160 |
SAE100R8-05 | 5/16″ | 7.9 | 17.0 | 20.0 | 4350 psi | 120 | 17400 | 65 | 0.175 |
SAE100R8-06 | 3/8″ | 9.5 | 19.0 | 27.6 | 4002 psi | 110 | 16008 | 75 | 0.190 |
SAE100R8-08 | 1/2″ | 12.7 | 22.7 | 24.0 | 3480 psi | 95 | 13920 | 102 | 0.300 |
SAE100R8-10 | 5/8″ | 15.9 | 25.0 | 18.5 | 2683 psi | 74 | 10732 | 150 | 0.360 |
SAE100R8-12 | 3/4″ | 19.1 | 29.0 | 13.5 | 1958 psi | 54 | 7832 | 180 | 0.370 |
SAE100R8-16 | 1″ | 25.4 | 34.0 | 10.0 | 1450 psi | 40 | 5800 | 230 | 0.490 |
The specification of the SAE 100 R8/DIN EN855(Steel wire) Hydraulic Hose
Part No. | I.D. | O.D. | W.P | B.P | B.R | W.T | |||
Dash | Inch | mm | mm | MPa | PSI | MPa | PSI | mm | kg/m |
SAE100R8-04 | 1/4″ | 6.4 | 13.3 | 35.0 | 5075 psi | 140 | 20300 | 40 | 0.290 |
SAE100R8-05 | 5/16″ | 7.9 | 15.0 | 32.5 | 4713 psi | 130 | 18850 | 50 | 0.340 |
SAE100R8-06 | 3/8″ | 9.5 | 17.0 | 29.0 | 4205 psi | 116 | 16820 | 70 | 0.400 |
SAE100R8-08 | 1/2″ | 12.7 | 20.0 | 26.0 | 3770 psi | 104 | 15080 | 80 | 0.560 |
SAE100R8-10 | 5/8″ | 15.9 | 23.3 | 20.0 | 2900 psi | 80 | 11600 | 130 | 0.630 |
SAE100R8-12 | 3/4″ | 19.1 | 26.0 | 17.5 | 2538 psi | 70 | 10150 | 160 | 0.750 |
SAE100R8-16 | 1″ | 25.4 | 33.0 | 12.0 | 1740 psi | 48 | 6960 | 220 | 1.000 |
Non-Conductive SAE 100 R8 Hydraulic Hose Technical Specifications:
Code | Size | Inside Diameter | Outside Diameter | Working Pressure | Bursting Pressure | Bend Radius | Weight | Length | Ferrule & Fitting Code | |||||
# | Dash | mm | Inch | mm | mm | bar | psi | bar | psi | mm | kgs/m | m | Codigo | Codigo |
SNP-R8N02 | R8-02 | 3.2 | 1/8″ | 3.4-3.6 | 10.2 | 354 bar | 5133 psi | 1416 | 20532 | 20 | 0.09 | 90-110 | ××××1-××-02 | 00018-02 |
SNP-R8N03 | R8-03 | 4.8 | 3/16″ | 4.6-5.4 | 13.1 | 345 bar | 5003 psi | 1380 | 20010 | 40 | 0.120 | 90-110 | ××××1-××-03 | 00018-03 |
SNP-R8N04 | R8-04 | 6.4 | 1/4″ | 6.2-7.0 | 15.9 | 345 bar | 5003 psi | 1380 | 20010 | 50 | 0.160 | 90-110 | ××××1-××-04 | 00018-04 |
SNP-R8N05 | R8-05 | 7.9 | 5/16″ | 7.7-8.5 | 17.0 | 300 bar | 4350 psi | 1200 | 17400 | 65 | 0.175 | 90-110 | ××××1-××-05 | 00018-05 |
SNP-R8N06 | R8-06 | 9.5 | 3/8″ | 9.3-10.1 | 19.0 | 276 bar | 4002 psi | 1104 | 16008 | 75 | 0.190 | 90-110 | ××××1-××-06 | 00018-06 |
SNP-R8N08 | R8-08 | 12.7 | 1/2″ | 12.3-13.5 | 22.7 | 240 bar | 3480 psi | 960 | 13920 | 102 | 0.300 | 90-110 | ××××1-××-08 | 00018-08 |
SNP-R8N10 | R8-10 | 15.9 | 5/8″ | 15.5-16.7 | 25.0 | 185 bar | 2683 psi | 740 | 10730 | 150 | 0.360 | 45-55 | ××××1-××-10 | 00018-10 |
SNP-R8N12 | R8-12 | 19.1 | 3/4″ | 18.6-19.8 | 29.0 | 135 bar | 1958 psi | 540 | 7830 | 180 | 0.370 | 45-55 | ××××1-××-12 | 00018-12 |
SNP-R8N16 | R8-16 | 25.4 | 1″ | 25.0-26.4 | 34.0 | 100 bar | 1450 psi | 400 | 5800 | 230 | 0.490 | 45-55 | ××××1-××-16 | 00018-16 |
Twin line SAE 100 R8 Hydraulic Hose Technical Specifications:
Code | Size | Inside Diameter | Outside Diameter | Working Pressure | Bursting Pressure | Bend Radius | Weight | Length | Ferrule & Fitting Code | |||||
# | Dash | mm | Inch | mm | mm | bar | psi | bar | psi | mm | kgs/m | m | Codigo | Codigo |
SNP-R8D02 | R8-02 | 3.2 | 1/8″ | 3.4-3.6 | 10.2 | 354 bar | 5133 psi | 1416 | 20532 | 20 | 0.18 | 90-110 | ××××1-××-02 | 00018-02 |
SNP-R8D03 | R8-03 | 4.8 | 3/16″ | 4.6-5.4 | 13.1 | 345 bar | 5003 psi | 1380 | 20010 | 40 | 0.240 | 90-110 | ××××1-××-03 | 00018-03 |
SNP-R8D04 | R8-04 | 6.4 | 1/4″ | 6.2-7.0 | 15.9 | 345 bar | 5003 psi | 1380 | 20010 | 50 | 0.320 | 90-110 | ××××1-××-04 | 00018-04 |
SNP-R8D05 | R8-05 | 7.9 | 5/16″ | 7.7-8.5 | 17.0 | 300 bar | 4350 psi | 1200 | 17400 | 65 | 0.350 | 90-110 | ××××1-××-05 | 00018-05 |
SNP-R8D06 | R8-06 | 9.5 | 3/8″ | 9.3-10.1 | 19.0 | 276 bar | 4002 psi | 1104 | 16008 | 75 | 0.380 | 90-110 | ××××1-××-06 | 00018-06 |
SNP-R8D08 | R8-08 | 12.7 | 1/2″ | 12.3-13.5 | 22.7 | 240 bar | 3480 psi | 960 | 13920 | 102 | 0.600 | 90-110 | ××××1-××-08 | 00018-08 |
SNP-R8D10 | R8-10 | 15.9 | 5/8″ | 15.5-16.7 | 25.0 | 185 bar | 2683 psi | 740 | 10730 | 150 | 0.720 | 45-55 | ××××1-××-10 | 00018-10 |
SNP-R8D12 | R8-12 | 19.1 | 3/4″ | 18.6-19.8 | 29.0 | 135 bar | 1958 psi | 540 | 7830 | 180 | 0.740 | 45-55 | ××××1-××-12 | 00018-12 |
SNP-R8D16 | R8-16 | 25.4 | 1″ | 25.0-26.4 | 34.0 | 100 bar | 1450 psi | 400 | 5800 | 230 | 0.980 | 45-55 | ××××1-××-16 | 00018-16 |
Raw Material:
Imported rubber material Vietnam and Thailand
High tensile strength 2750Mpa steel wire from China’s first-class factory
Powerful, safe and stable hydraulic hose products
Good dispersibility, high bearing pressure and superior pulse performance.
Excellent oil resistance, heat resistance and aging resistance.
Excellent bending resistance and fatigue resistance
Factory Workshop:
Sinopulse is a 100% manufacturer of hydraulic hoses and industrial hoses, including all oilfields, agriculture, transportation, construction, mining, and forestry.
Daily output 500,000 meters of hoses, workshop covering 40,000 m²
40 production lines, involving high-speed joint machines, braiding machines, high-speed spiral machines, Italy VP automatic industrial machines, and Complete series Laboratory Testing Equipment
120 Skilled workers, 6 Engineers with 2 technical counselors from famous international companies,2 QC departments, and 2 warehouse managers are fall of our lovely people.
50 Sales and three groups of logistics specialists serve our clients from Italy, Germany, Uk, Spain, the USA, Canada, Brazil, Argentina, Panama, Peru, Chile, Viet Nam, Indonesia, Australia, Romania
Laboratory:
Our factory introduces a full range of laboratory testing equipment. It has advanced laboratory capabilities to conduct product quality testing and research and development work to ensure stable and excellent product quality.
After purchasing raw materials, we test each batch to ensure they meet our product’s technical requirements.
After production, we test each hose, its working and burst pressure, and conduct a pulse test for each order to ensure that it is 100% qualified after leaving the factory.
We strive to provide our customers with top-notch hoses, doing everything we can to ensure their quality.
“Let our end users feel comfortable in use and safe in driving!” is our common goal.
Product packaging:
1. When packing hydraulic hoses, cartons or wooden boxes according to customer requirements.
2. We will pack the hose after finishing the hose production.
3. Generally, woven bags and plastic films are used for packaging.
4. Special packaging can be provided according to customer requirements. Special packaging is a request of Edible ACC Ording customers.
Hot Products
What is SAE 100R8 hose?
The 100R8 Black Thermoplastic Hose Excede SAE 100R8 is part of the Hennings line of thermoplastic hoses, manufactured with one or more fiber reinforcements and/or steel braids between the hose and the cover, which is designed to withstand constant flexing under high pressure. They are less flexible than conventional hydraulic hoses, but are much stronger than rubber hoses, for example.
How to choose good R8 hose?
The tube in r8 hose is made from high quality hydraulic fluids resistant thermoplastic, making the hose widely used for the delivery of hydraulic fluids. The reinforcement is made from suitable synthetic fiber. The cover is made from weather and hydraulic fluids resistant thermoplastic, making the hose have longer service life.
What is SAE 100 R8 thermoplastic hose?
Thermoplastic flexible hoses with two high tensile braids in accordance with SAE 100 R8 standards are widely used in hydraulics, especially forklifts and applications where the hose needs to slide inside a pulley. The hose is very compact. The hose can withstand medium and high pressures.
where can SAE R8 used?
There is a wide variety of thermoplastic hoses for various applications or for carrying special fluids. Thermoplastic hoses with steel reinforcement, thermoplastic hoses without electrical conductivity, or for carrying varnishes and glues, and thermoplastic hoses for cleaning underground galleries.
SAE 100 R8 thermoplastic hydraulic hose is suitable for delivering synthetic, petroleum or water-based hydraulic fluids and it is mainly used in high pressure working conditions.
How many HP does R8-04 have?
R8-04 – 1/4″ SAE 100R8 thermoplastic hose is recommended for high pressure hydraulic lines, lubrication, medium pressure gas, and solvent. Maximum working pressure: 5,000 psi
What is the pressure rating of the SAE 100 R8 hose?
The pressure rating of the SAE 100 R8 hose varies depending on the diameter of the hose. For example, a 3/8″ diameter SAE 100 R8 Thermoplastic Hose has a working pressure of 4000 PSI.
What does SAE stand for on hoses?
Understanding the intricacies ot hvdrauic titings is crucialfor professionals in the tield, and one term that otten pops upis sAE, This acronym, short for the society of Automotive Engineers, plays a pivotal role in standardizing these crucial components.
What are the common sae 100r8 specification?
Basically, the R8 specification table above is the specifications that our factory often produces and customers purchase, mainly 1/8″ to 1″, common specifications for 1/4″, 3/8″,1/2″, or larger sizes, select the specifications according to your needs
How to custom sae 100 r8 hose?
you may custom your r8 hose into several types: your logo, apperance, layer, specifications and others. Cause we are hose factory, we can supply you any type of quality hoses as you need.
Why choose Sinopulse for your R8 hose supplier?
For over 20 years, Sinopulse has been Supplying domestic and international customers in scores of industries with hydraulic hoses, hydraulic fittings, industrial hoses, automotive hoses, PVC hoses, quick coupling, air hoses, etc. Your first choice of hose supply chain supplier. In Sinopulse factory, hydraulic hose can create custom hydraulic pipes and industrial hoses for extreme environments, such as high temperature, high pressure, high cold, and high acid. Our hydraulic hoses are all compliant with your local hose codes and are a preferred alternative to other brands of hoses.
