Steam Hose

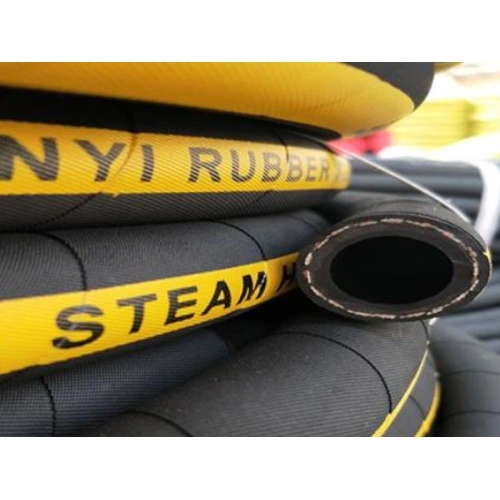

Steam Hose is a hose that can be used to transmit high-temperature and high-pressure steam. It has the characteristics of high-temperature resistance, high-pressure resistance, and corrosion resistance. Steam Hose usually has a three-layer structure, including the inner, reinforcement, and outer layers. The inner layer is often made of high-temperature resistant rubber or polymer material, which can resist the erosion of high-temperature steam. The reinforcement layer is usually made of fibers, wires, or synthetic fibers to increase the strength and pressure resistance of the hose. The outer layer protects the hose from mechanical wear, environmental corrosion, etc.

Steam Hose is generally used in industrial fields, such as steam engines, boiler systems, chemical plants, petroleum refineries, etc., with many steam hose applications.



The steam hose is a rubber hose used to convey steam at high temperatures. It is often used in the chemical industry, the power industry, refineries, and in other industrial applications. Steam hoses are designed to withstand the high temperatures and pressures of the steam being conveyed. They are usually made from a combination of rubber and other materials, such as synthetic rubber, neoprene, or silicone.

Construction:
Inner Tube: Black high tensile EPDM synthetic rubber.
Reinforcement:  One or two high tensile steel wire braided.

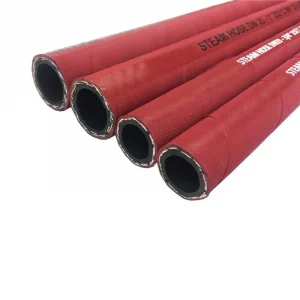

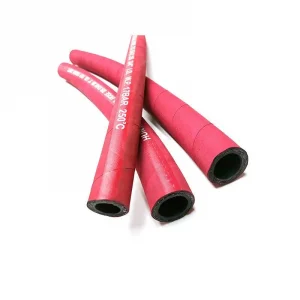

Cover: Black or Red, weather and abrasion-resistant high tensile synthetic EPDM rubber.
Working Pressure: Constant Pressure 17 Bar/250psi.
Temperature Range:-40℃～+220℃ (-40°F～428°F)



STEAM HOSE APPLICATION

Application: Used in the petrochemical industry, the shipyard can resist the superheated stem of a maximum of 220℃, and the constant temperature can reach 170 ℃.
 Specification:
Part No.ID ODWorking PressureBurst PressureLayer
inchmmmmBarpsiBarpsiply
ST250-063/8″10.518.017250517501
ST250-081/2″12.721.017250517501
ST250-105/8″15.925.017250517501
ST250-123/4″19.128.017250517501
ST250-161″25.434.517250517501
ST250-201-1/4″31.842.017250517501
ST250-241-1/2″38.249.017250517501
ST250-322″50.862.017250517501





Cord Steam (heat-resistant) Rubber Hose is Industrial Rubber Hose, it is the same structure as Steel Wire Reinforced Hydraulic Hose, but the inner rubber is EPDM.

Steam Hose or Epdm Steam Hose can be reinforced cord or steel wire.

We can make Custom Steam Hoses for different temperatures.



1. Wire Braided Steam Hose
Construction:
It is made of excellent heat-resistant rubber, and The reinforcement is braided with Copper facing wire.
Application:
For conveying saturated steam and superheated water continually at a temperature below 150ºC or intermittently at a temperature below 160ºC



ONE HIGH TENSILE STEEL WIRE BRAID 1W/B
Hose ID
Hose OD
Working Pressure
Burst Pressure
Minimum Bend Radius
inch
mm
mm
Mpa
Psi
Mpa
Psi
mm
3/8
11.4±0.5
21.5
1.0
150
4
570
130
1/2
13.5±0.5
24.5
1.0
150
4
570
180
5/8
15.8±0.5
27.5
1.0
150
4
570
205
3/4
19.0±0.5
30.5
1.0
150
4
570
240
7/8
22.0±0.5
33.5
1.0
150
4
570
280
1
25.2±0.5
37.0
1.0
150
4
570
300
1-1/4
28.6±0.6
44.0
1.0
150
4
570
420
1-1/2
32.0±0.6
50.5
1.0
150
4
570
500
1-3/4
39.5±0.8
57.5
1.0
150
4
570
500
2
45.8±0.8
63.5
1.0
150
4
570
630
2-1/2
56.5±0.8
77.5
1.0
150
4
570
700
TWO HIGH TENSILE STEEL WIRE BRAID 2W/B
Hose ID
Hose OD
Working Pressure
Burst Pressure
Minimum Bend Radius
inch
mm
mm
Mpa
Psi
Mpa
Psi
mm
3/8
11.4±0.5
23.0
2.0
300
6
860
130
1/2
13.5±0.5
26.0
2.0
300
6
860
180
5/8
15.8±0.5
29.0
2.0
300
6
860
205
3/4
19.0±0.5
32.0
2.0
300
6
860
240
7/8
22.0±0.5
35.0
2.0
300
6
860
280
1
25.2±0.5
38.5
2.0
300
6
860
300
1-1/4
28.6±0.6
45.5
2.0
300
6
860
420
1-1/2
32.0±0.6
52.0
2.0
300
6
860
500
1-3/4
39.5±0.8
59.0
2.0
300
6
860
500
2
45.8±0.8
65.0
2.0
300
6
860
630
2-1/2
56.5±0.8
79.0
2.0
300
6
860
700



Looking for an ideal Steam Rubber Hose Near Me Manufacturer & supplier? We have a wide selection at reasonable prices to help you get creative. All the 210 C Degree Steam Hoses are quality guaranteed. We are a China Origin Factory of Steel Wire Braided Steam Hose. If you have any questions, please feel free to contact us.
