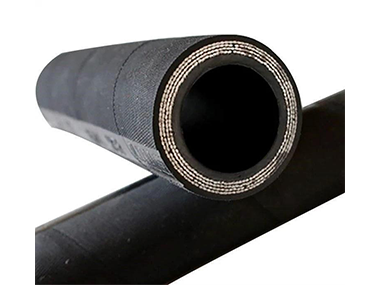

SAE 100R13 Hydraulic Hose
SAE 100R13 Hydraulic Hose is a multi-spiral, high-pressure hydraulic hose, with the option of a four or six spiral steel wire inner core. It is suitable for heavy-duty, high-impulse applications such as construction, mining, and industrial machinery. This hose performs excellently in extreme temperatures and has outstanding abrasion and ozone resistance.
SAE 100R13, SAE 100 R13,100R13, Hydraulic Hose, 100R13 Hydraulic Hose，Four or Six Spiral Hose SAE 100R13, SAE 100R13 Ultra High Pressure Hydraulic Hose，MSHA Approved R13
For example:
GR13 (SAE 100R13) hydraulic hose is suitable for excavators, forklifts, loaders, road rollers, concrete pump trucks, vibratory compactors, and other construction equipment;
Mining industry: It can be used in mining rigs, mining belt conveyors, mining cranes, and other equipment;
Industrial machinery: It can be used in metallurgical equipment, plastic machinery, presses, etc.
SAE 100 R13 Structure:
Inner Tube: high quality black synthetic rubber.
Reinforcement: multiple layers of high tensile and high strength thick spiraled steel wire in alternating direction, making the hose work well in very high pressure environment.
Reinforcement 1: Four spirals of 1/4″ to 1″ (DN 19- 31) high-tensile steel wire.

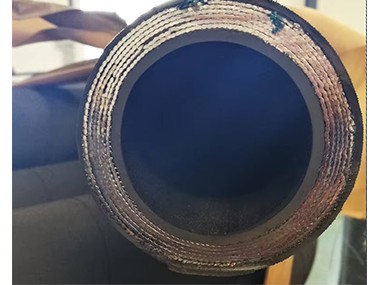

Reinforcement 2: Six spirals of 1-1/4″ to 2″ (DN 38 – 51) high-tensile steel wire.
Cover: high-quality black abrasion, corrosion and weather resistant synthetic rubber, making the hose have longer service life.
Feature
Work Temperature Range: -40°F/-40°C to 212°F/100°C（up to +248°F/120°C）
Main Applications: very high-pressure applications subject to surge or flexing, such as construction equipment, mining, and the high-performance industrial market

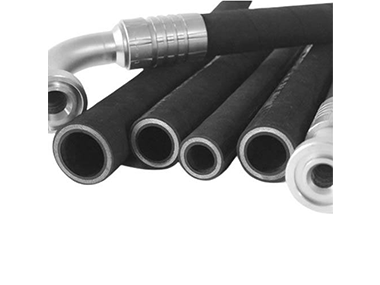

Fittings: We hold a large stock of fittings and hoses, enabling us to respond immediately to your hydraulic needs, up to 50mm diameter.
Applicable Standards: ISO 3862 R13, EN 856 R13, SAE J517 100R13.
Specification of the SAE 100R13 Steel Wire Spiral Hydraulic Hose
| Part No. | I.D. | O.D. | W.P | B.P | B.R | W.T | |||
| Dash | Inch | mm | mm | MPa | PSI | MPa | PSI | mm | kg/m |
| SAE100R13-12 | 3/4″ SAE 100R13 Hydraulic Hose | 19.1 | 31.8 | 35.0 | 5075 | 140 | 20300 | 240 | 1.472 |
| SAE100R13-16 | 1″ SAE 100R13 Hydraulic Hose | 25.4 | 39.2 | 35.0 | 5075 | 140 | 20300 | 300 | 1.984 |
| SAE100R13-20 | 1-1/4″ SAE 100R13 Hydraulic Hose | 31.8 | 50.0 | 35.0 | 5075 | 140 | 20300 | 420 | 3.519 |
| SAE100R13-24 | 1-1/2″ SAE 100R13 Hydraulic Hose | 38.1 | 58.5 | 35.0 | 5075 | 140 | 20300 | 500 | 3.440 |
| SAE100R13-32 | 2″ SAE 100R13 Hydraulic Hose | 50.8 | 72.0 | 35.0 | 5075 | 140 | 20300 | 640 | 4.765 |
Raw Material:
Imported rubber material Vietnam and Thailand
High tensile strength 2750Mpa steel wire from China’s first-class factory
Powerful, safe and stable hydraulic hose products
Good dispersibility, high bearing pressure and superior pulse performance.
Excellent oil resistance, heat resistance and aging resistance.
Excellent bending resistance and fatigue resistance
Factory Workshop:
Sinopulse is a 100% manufacturer of hydraulic hoses and industrial hoses, including all oilfields, agriculture, transportation, construction, mining, and forestry.
Daily output 500,000 meters of hoses, workshop covering 40,000 m²
40 production lines, involving high-speed joint machines, braiding machines, high-speed spiral machines, Italy VP automatic industrial machines, and Complete series Laboratory Testing Equipment
120 Skilled workers, 6 Engineers with 2 technical counselors from famous international companies,2 QC departments, and 2 warehouse managers are fall of our lovely people.
50 Sales and three groups of logistics specialists serve our clients from Italy, Germany, Uk, Spain, the USA, Canada, Brazil, Argentina, Panama, Peru, Chile, Viet Nam， Indonesia, Australia, Romania
Laboratory:
Our factory introduces a full range of laboratory testing equipment. It has advanced laboratory capabilities to conduct product quality testing and research and development work to ensure stable and excellent product quality.
After purchasing raw materials, we test each batch to ensure they meet our product’s technical requirements.
After production, we test each hose, its working and burst pressure, and conduct a pulse test for each order to ensure that it is 100% qualified after leaving the factory.
We strive to provide our customers with top-notch hoses, doing everything we can to ensure their quality.
“Let our end users feel comfortable in use and safe in driving!” is our common goal.
Product packaging:
1. When packing hydraulic hoses, cartons or wooden boxes according to customer requirements.
2. We will pack the hose after finishing the hose production.
3. Generally, woven bags and plastic films are used for packaging.
4. Special packaging can be provided according to customer requirements. Special packaging is a request of Edible ACC Ording customers.
Continuous Brand Layline Example:
| SINOPULSE HYDRAULIC HOSE GR13-12 SAE J517 100R13 3/4″ (DN19) W.P. 35MPa (5075PSI) -2Q11- |
Find a trusted hose factory. Any requirements and problems can ask us at any time.
What is SAE 100R13 Hydraulic Hose
SAE 100R13 hydraulic hose is reinforced with four or six layers of alternating direction spiral steel wires to provide extremely high working pressures. Since the individual steel wires are parallel, the spiral reinforcement is particularly suitable for high pressure pulse applications. In addition, a thin rubber bonding layer separates the adjacent spiral steel wires to avoid cutting each other. Compared with wire braided hoses, spiral hydraulic hoses can provide a constant pressure of 5075 psi to the system. Nitrile synthetic rubber is very compatible with biodegradable hydraulic fluids such as polyester, polyglycol and vegetable oils as well as standard hydraulic fluids, especially where resistance is required and in harsh environments and abrasive conditions, in addition to marine applications and mines, underground and open-pit shafts. It features 4 to 6 steel webs/spirals that allow flexibility without loss of characteristics. The hose is black in color and has the SAE 100 r 13 logo.
Note: Hoses that meet or exceed SAE 100R13 specifications, for your specific requirements, please contact us today
Why choose SAE 100R13 Hydraulic Hose
1. Optimal performance: Thanks to its seamless extruded synthetic rubber of uniform thickness on the inside, this flexible hose ensures optimal flow and minimal pressure loss. Thus, it ensures perfect efficiency for all your industrial operations.
2. Exceptional robustness: Made of high-quality materials, this flexible hose has an amazing ability to withstand high pressures up to 345 bar and extreme temperature conditions from -40°C to +100°C. Its 6-layer steel reinforcement makes it foolproof and supports your processes in any situation.
3. Guaranteed durability: Thanks to its outer wear-resistant synthetic rubber coating, the flexible R13 – STANDARD EN 856 – STANDARD EN SAE 100 R13 hose has a long service life. It is resistant to oils, fuels and atmospheric media, ensuring an optimal service life and an excellent return on investment.
4. Proven versatility: Available in a variety of lengths and diameters, this flexible hose is suitable for a wide range of industrial applications. Thus, it can meet a wide range of needs and be perfectly integrated into your operating processes.
Where to use SAE 100 R13?
Applications:
Ultra-high pressure reinforced hydraulic hose for petroleum-based hydraulic fluids, Heavy duty power lines, Hydrostatic transmissions, Heavy duty environmental conditions, Specific installations for severe abrasive conditions, Marine applications, Underground and surface mining
Heavy equipment
Agricultural equipment
Logging equipment
Marine and industrial applications
Oilfield equipment
Construction/mining equipment
Hydrostatic drives
Industry:
Agriculture
Chemical
Defence Force
General Purpose Industrial
HVAC
Industrial and Power
Offshore
Oil & Gas
Onshore
Transportation
Water Treatment
Why Choose SINOPULSE
Our factory complies with ISO 9001:2015 standard.
We attach great importance to quality in all processes. We ensure that our hydraulic hoses can withstand the most stringent environmental restrictions.
The entire production process of our hydraulic hoses is carried out in our factory, ensuring the quality of each hose and 99.99% on-time delivery rate.
If you have special requirements for the performance of rubber hoses, you can contact us, we provide a variety of customized services.
We are a leading hydraulic hose manufacturer in China, if you are looking for hydraulic hoses, hydraulic hose connectors, industrial hoses and other hose related products, please feel free to contact us. Please feel free to contact us to get more piping solutions for your project.
