PVC Clear Hose
PVC Clear Hose is a flexible, non-toxic, and lightweight hose that is used for a variety of applications. It is made from a clear PVC material that is reinforced with polyester yarn for added strength and durability. PVC Clear Hose is resistant to chemicals, oils, and UV rays, making it an ideal choice for outdoor applications. It is also resistant to kinking and crushing, making it easy to install and use.

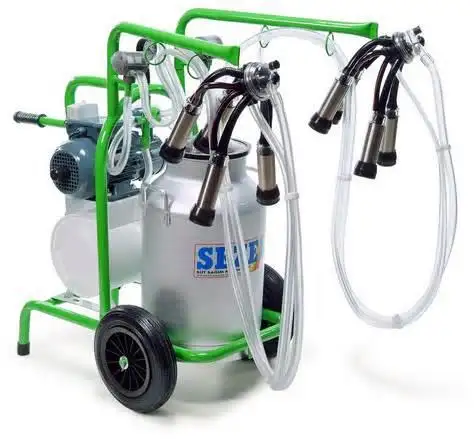

Applications: Widely used for the conveyance of water, air, oil, gas, and weak chemicals in industry, agriculture, and family. The hose used for foodstuffs is made of special materials. It is light, flexible, durable, non-toxic, without odor, and transparent. It can also be used for conveying milk, beverage, distilled liquor, beer, jan, and other foods in vending machines, ice machines, refrigerators, etc.
Inside Diameter | Outside Diameter | Wall | Working Pressure | Burst Pressure | Length Max. | Weight | Packing Measurement | |
inch | mm | mm | mm | Mpa | Mpa | m | kg/m | D*H(mm) |
3/16” | 5 | 10 | 2 | 1 | 3 | 100 | 0.077 | 380*130 |
1/4” | 6 | 10 | 2 | 0.8 | 2.4 | 100 | 0.066 | 380*130 |
6 | 11 | 2.5 | 1 | 3 | 100 | 0.087 | 380*130 | |
5/1” | 8 | 12 | 2 | 0.8 | 2.4 | 100 | 0.082 | 400*130 |
8 | 13 | 2.5 | 1 | 3 | 100 | 0.108 | 430*130 | |
3/8” | 10 | 14 | 2 | 0.7 | 2.1 | 100 | 0.098 | 460*130 |
10 | 15 | 2.5 | 0.8 | 2.4 | 100 | 0.128 | 460*130 | |
1/2” | 12 | 16 | 2 | 0.6 | 1.8 | 100 | 0.115 | 500*190 |
13 | 17 | 2 | 0.5 | 1.5 | 100 | 0.123 | 500*190 | |
13 | 18 | 2.5 | 0.6 | 1.8 | 100 | 0.159 | 500*190 | |
5/8” | 15 | 20 | 2.5 | 0.7 | 2 | 50 | 0.179 | 430*180 |
16 | 20 | 2 | 0.5 | 1.6 | 50 | 0.147 | 430*180 | |
16 | 21 | 2.5 | 0.7 | 2 | 50 | 0.189 | 430*180 | |
3/4” | 19 | 24 | 2.5 | 0.6 | 1.8 | 50 | 0.22 | 500*180 |
19 | 25 | 3 | 0.7 | 2.1 | 50 | 0.27 | 500*180 | |
1” | 25 | 30 | 2.5 | 0.5 | 1.5 | 50 | 0.281 | 580*170 |
25 | 31 | 3 | 0.6 | 1.8 | 50 | 0.343 | 580*170 | |
1-1/4” | 32 | 38 | 3 | 0.3 | 0.9 | 40 | 0.429 | 750*260 |
32 | 39 | 3.5 | 0.4 | 1.2 | 40 | 0.508 | 750*260 | |
1-1/2” | 38 | 45 | 3.5 | 0.4 | 1.2 | 40 | 0.593 | 780*260 |
38 | 46 | 4 | 0.5 | 1.5 | 40 | 0.686 | 780*260 | |
1-3/4” | 45 | 55 | 5 | 0.5 | 1.5 | 40 | 1.021 | 900*200 |
2” | 50 | 59 | 4.5 | 0.4 | 1.2 | 30 | 1.002 | 1000*250 |
50 | 60 | 5 | 0.4 | 1.2 | 30 | 1.123 | 1000*250 | |
2-1/2″ | 64 | 78 | 7 | 0.3 | 1 | 20 | 2.029 | 1000*280 |
64 | 80 | 8 | 0.3 | 1 | 20 | 2.352 | 1080*300 |
