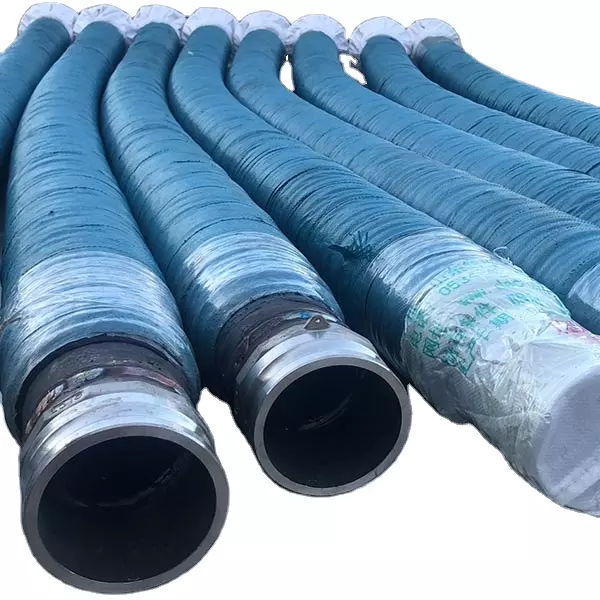

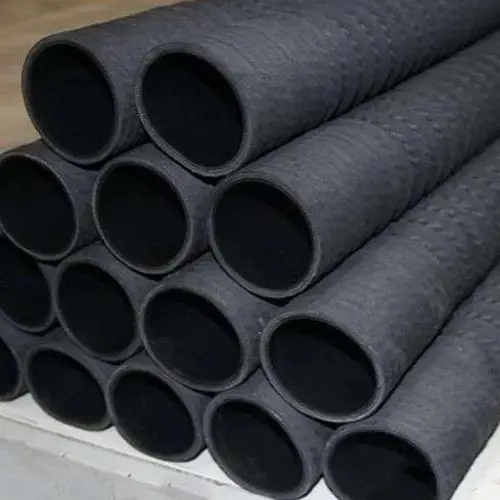

Concrete Vibrator Hose

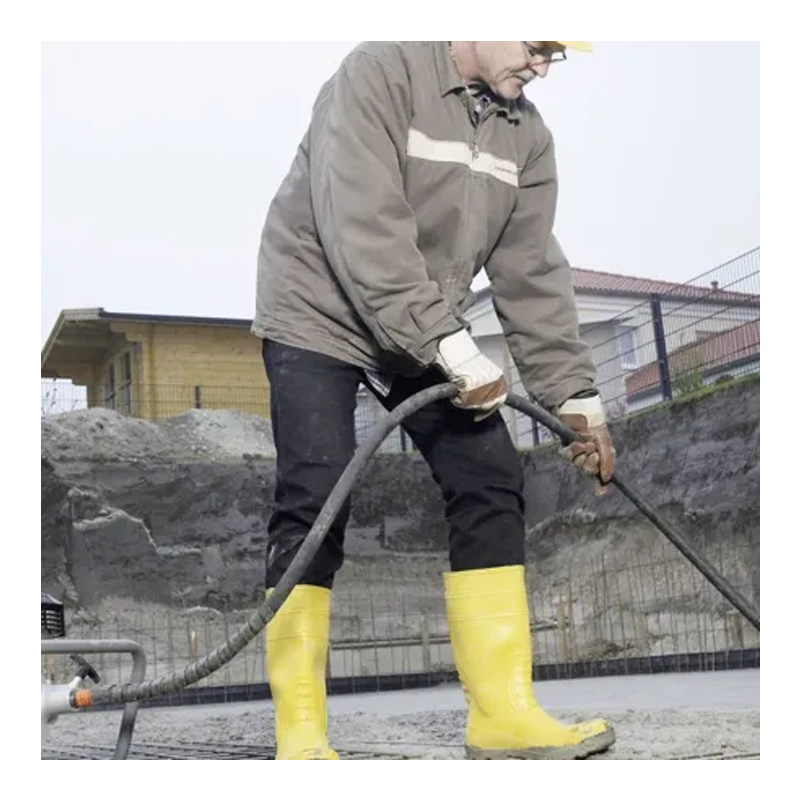

Concrete vibrator hoses are flexible, durable hoses that attach a concrete vibrator to a power source. They are used to help settle and compact freshly poured concrete. The hoses are typically rubber or PVC and are reinforced with a wire helix for strength and durability. The hoses come in various lengths and diameters to accommodate different types of concrete vibrators.
Application: Vibrating hose is a necessary fitting which is a flexible transferring device. It is widely used in adjustable mandrel Concrete.

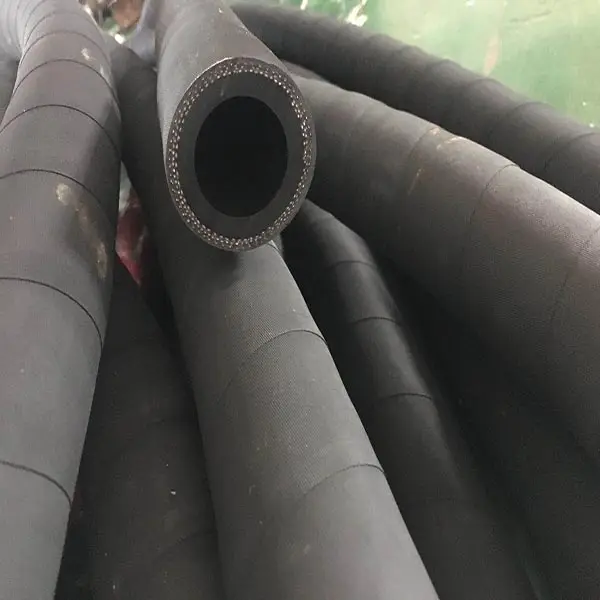

Features: The tube is a complex structure that consists of spring (made of alloy tool steel cold rolling belt or carbon structure cold rolling steel belt), brass steel wire braided ply, and inner and outer rubber ply.
Cover: The cover is made from synthetic rubber, resistant to abrasion, oil, and aging. It also has excellent resistance to tensile.
outer diameter (mm) | inner dia (mm) | tensile of rubber (N/cm2) | the adhesive of inner rubber (N/cm2) | steel belt material (Mn) | steel belt hardness (HRC) | rubber hardness | steel wire braid | min. bending radius (mm) |
16 | 9 | >1000 | 50-60 | 40-65 | 20-30 | 58-62 | 1 | 75 |
20 | 10 | >1000 | 50-60 | 40-65 | 20-30 | 58-62 | 1 | 80 |
22 | 10 | >1000 | 50-60 | 40-65 | 20-30 | 58-62 | 2 | 80 |
24 | 13 | >1000 | 60-65 | 20-65 | 25-30 | 75-80 | make according to the demand | 100 |
30 | 16 | >1000 | 60-65 | 20-65 | 25-30 | 75-80 | 120 | |
32 | 18 | >1000 | 60-65 | 20-65 | 25-30 | 75-80 | 150 | |
36 | 20 | >1000 | 60-65 | 20-65 | 25-30 | 75-80 | 200 | |
42 | 25 | >1000 | 60-65 | 20-65 | 25-30 | 75-80 | 250 |
Note: Can be processed according to user needs is not listed in the table specifications.
Concrete Vibrator Hose is one Industrial Rubber Hose for concrete buildings. We can also make Custom Concrete Vibrator Hoses, Cement Pump Hoses, and Concrete Pump Hoses for construction buildings.
Are you looking for an ideal Concrete Pump Rubber Hose Manufacturer & supplier? We have a wide selection at reasonable prices to help you get creative. All the Wear Resistant Cement Rubber Hoses are quality guaranteed. We are a China Origin Factory of Vibrator Rubber Hose. If you have any questions, please feel free to contact us.
