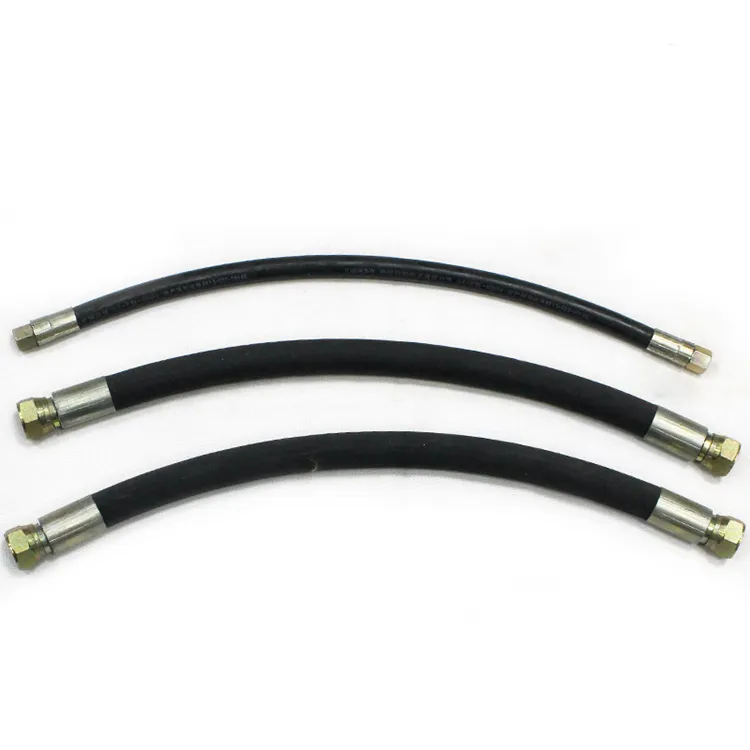

EN 856 4SH Hydraulic Hose
High Pressure Hose EN 856 4SH
EN 856 4SH hose is a hydraulic hose with a high-pressure rating, which makes it suitable for heavy-duty industrial applications where fluids need to be reliably transferred under extreme pressure conditions.
It is commonly used in construction machinery, mining equipment, and oil and gas drilling platforms to handle hydraulic fluids such as glycol, mineral oil, fuel, water, and air.
Its four-ply high-strength steel wire-spiral construction and resistance to abrasion, weather, and oil make it a reliable choice for fluid transfer in harsh environments.

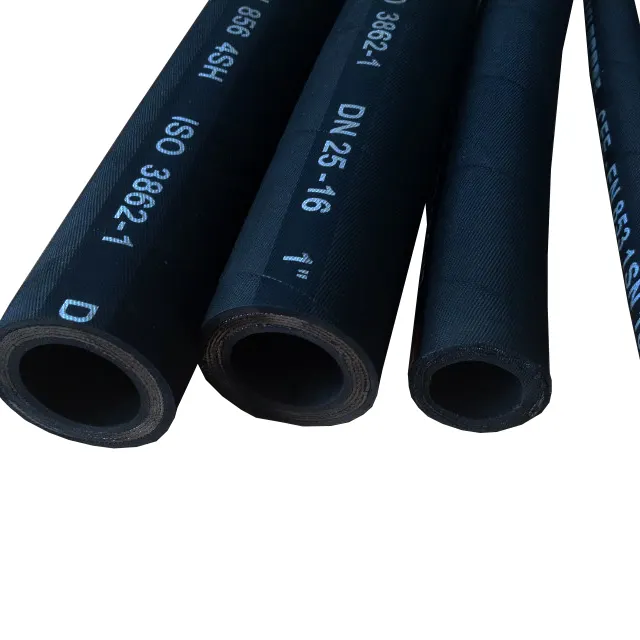

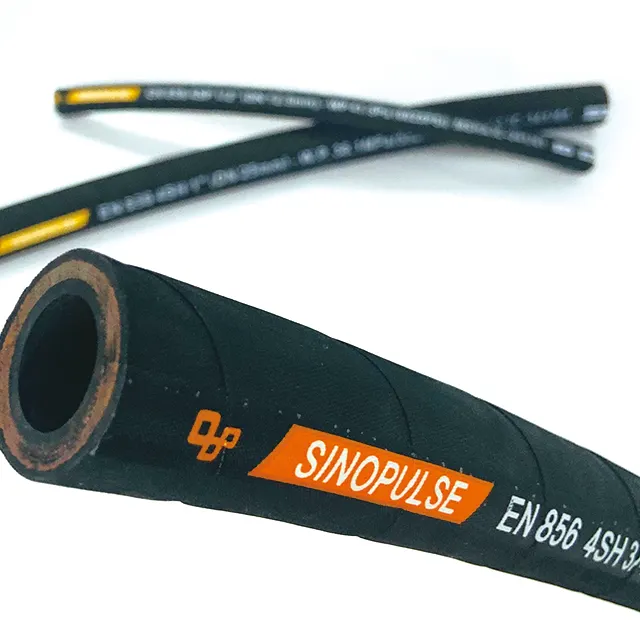

EN 856 4SH Hydraulic Hose Structure:
Inner Tube: black synthetic rubber, making the hose resistant to abrasion, corrosion and oil.
Reinforcement: four layers of high tensile and high strength spiraled steel wire, making the hose highly resistant to high pressure.
Cover: high quality black synthetic rubber, making the hose resistant to abrasion, corrosion, weather, ozone, cut, oil and aging
Feature
Temperature Range: -40โ๏ผ-104 โ๏ผto +100โ๏ผ+212 โ๏ผ
Main Applications: very high-pressure applicationsused for petroleum-based hydraulic fluids.
Suitable fitting: For use with DKM, DKL, DKOL, DKS, DKOS, DKR, DKRO, ORFS, JIC 37ยฐ, SFL, SFS fittings. -Female CM, CORFS, CJIC 37ยฐ, CEL, CES, Banjo.
Applicable Standards: ISO 3862 4SH, EN 856 4SH.
The specification of EN 856 4SH Hydraulic Hose
| Part No. | I.D. | ย O.D. | W.P | B.P | B.R | W.T | |||
| Dash | Inch | mm | mm | MPa | PSI | MPa | PSI | mm | kg/m |
| 4SH-12 | 3/4" EN 856 4SH Hydraulic Hose | 19.1 | 31.8 | 42.0 | 6090 | 168 | 24360 | 280 | 1.476 |
| 4SH-16 | 1" EN 856 4SH Hydraulic Hose | 25.4 | 38.7 | 38.0 | 5510 | 152 | 22040 | 340 | 1.984 |
| 4SH-20 | 1-1/4" EN 856 4SH Hydraulic Hose | 31.8 | 46.2 | 32.5 | 4713 | 130 | 18850 | 460 | 2.428 |
| 4SH-24 | 1-1/2" EN 856 4SH Hydraulic Hose | 38.1 | 53.5 | 29.0 | 4205 | 116 | 16820 | 560 | 2.871 |
| 4SH-32 | 2" EN 856 4SH Hydraulic Hose | 50.8 | 68.0 | 25.0 | 3625 | 100 | 14500 | 700 | 4.534 |
Sinopulse Factory
Raw Material:
Imported rubber material Vietnam and Thailand
High tensile strength 2750Mpa steel wire from China's first-class factory
Powerful, safe and stable hydraulic hose products
Good dispersibility, high bearing pressure and superior pulse performance.
Excellent oil resistance, heat resistance and aging resistance.
Excellent bending resistance and fatigue resistance
Factory Workshop:
Sinopulse is a 100% manufacturer of hydraulic hoses and industrial hoses, including all oilfields, agriculture, transportation, construction, mining, and forestry.
Daily output 500,000 meters of hoses, workshop covering 40,000 mยฒ
40 production lines, involving high-speed joint machines, braiding machines, high-speed spiral machines, Italy VP automatic industrial machines, and Complete series Laboratory Testing Equipment
120 Skilled workers, 6 Engineers with 2 technical counselors from famous international companies,2 QC departments, and 2 warehouse managers are fall of our lovely people.
50 Sales and three groups of logistics specialists serve our clients from Italy, Germany, Uk, Spain, the USA, Canada, Brazil, Argentina, Panama, Peru, Chile, Viet Nam๏ผ Indonesia, Australia, Romania
Laboratory:
Our factory introduces a full range of laboratory testing equipment. It has advanced laboratory capabilities to conduct product quality testing and research and development work to ensure stable and excellent product quality.
After purchasing raw materials, we test each batch to ensure they meet our product's technical requirements.
After production, we test each hose, its working and burst pressure, and conduct a pulse test for each order to ensure that it is 100% qualified after leaving the factory.
We strive to provide our customers with top-notch hoses, doing everything we can to ensure their quality.
"Let our end users feel comfortable in use and safe in driving!" is our common goal.
Product packaging:
1. When packing hydraulic hoses, cartons or wooden boxes according to customer requirements.
2. We will pack the hose after finishing the hose production.
3. Generally, woven bags and plastic films are used for packaging.
4. Special packaging can be provided according to customer requirements. Special packaging is a request of Edible ACC Ording customers.

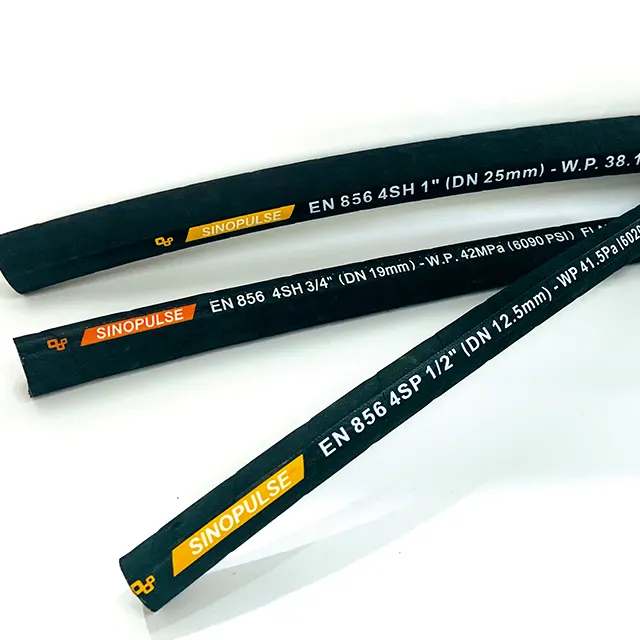

Continuous Brand Layline Example:
| SINOPULSE HYDRAULIC HOSE G4SH-12 EN856 4SH 3/4" (DN19) W.P. 42MPa (6090PSI) -2Q11- |
Find a trusted hose factory. Any requirements and problems can ask us at any time.
What is EN 856 4SH Steel Wire Spiral Hydraulic Hose
This EN 856 4SH Steel Wire Spiral Hydraulic Hose has a higher working pressure performance, so it is very suitable for extremely high pressure working conditions. It has excellent performance in conveying petroleum-based hydraulic oils in the working temperature range of -40 ยฐC to +100 ยฐC. It consists of three parts: barrel, reinforcement and protective layer. The hose is made of black oil-resistant synthetic rubber, which makes the hose work well when conveying oil. The reinforcement is made of four layers of high-strength high-strength spiral steel wire, which is specially designed for rubber hoses. Therefore, the hose is resistant to high pressure and has outstanding performance under high-pressure working conditions. The outer shell is made of black oil-resistant, corrosion-resistant, abrasion-resistant, weather-resistant and ozone-resistant synthetic rubber, and the appearance is cloth pressed rubber.
Where EN 856 4SH Steel Wire Spiral Hydraulic Hose can be used
Extremely high pressure and high pulse hydraulic applications. This hose is the most flexible EN 856 4SH hose in the industry with superior impulse performance (tested to 1,000,000 impulse cycles at a bend radius lower than the EN 856 standard). Compatible with biodegradable hydraulic fluids such as synthetic esters, polyglycols and vegetable oils as well as petroleum based hydraulic fluids. Hydraulic hose EN 856 4SH can deliver hydraulic oil, liquid as well as gas. It can transfer petrol based liquid such as mineral oil, hydraulic oil, fuel oil and lubricant. While itโs also suitable for water based liquid. Itโs apply for all the hydraulic system in oil, transport, metallurgy, mine and other forestry. In a word, itโs suitable for all the high pressure applications.
Suitable for hydraulic systems of most high pressure mobile machinery and equipment.

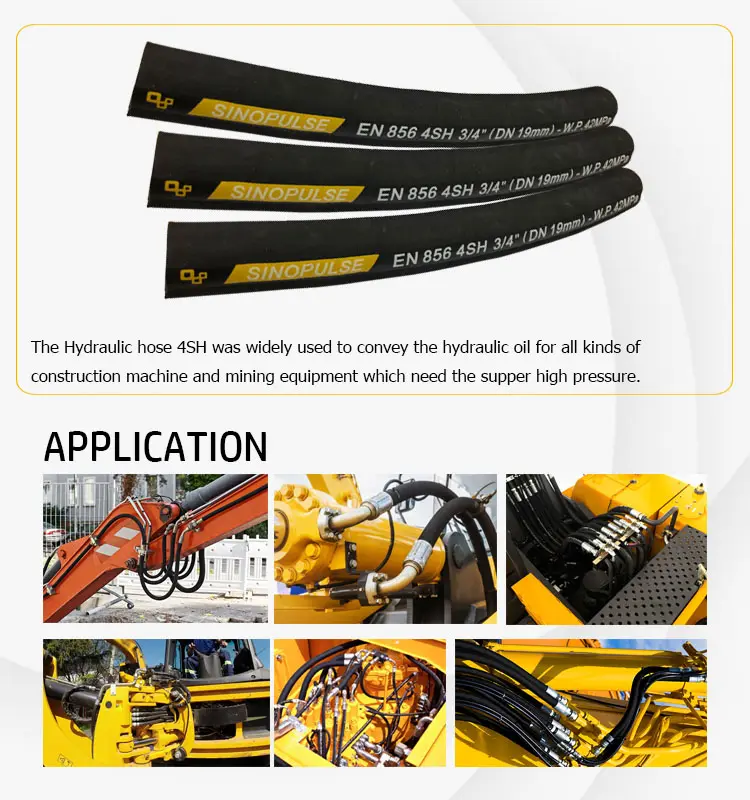

Road machinery: road rollers, trailers, mixers and pavers
Construction machinery: tower cranes, lifts
Transportation: cars, trucks, tankers, trains, airplanes
Environmental machinery: spray trucks, street sprinklers, street sweepers
Offshore operations: offshore drilling platforms
Ships: boats, barges, tankers, container ships
Agricultural machinery: tractors, harvesters, seeders, threshers, fellers
Mining machinery: loaders, excavators, stone crushers
Differences between EN 856 4SP and EN 856 4SH
Hydraulic hoses EN 856 4SP and EN 856 4SH have the same structure. Both have an inner tube, a reinforcement layer and an outer layer. In addition, they are both suitable for extremely high pressure applications. However, the reinforcement layer is different. EN 856 4SP is reinforced with 4 layers of steel wire braid. But EN 856 4SH is a steel wire spiral layer. In fact, the steel wire braid reinforcement layer can withstand higher pressures. But EN 856 4SH is also suitable for your tough hydraulic work.
4 SP high-pressure hoses are reinforced with steel wire and are designed for medium pressure levels in hydraulic systems; 4 SH high-pressure hoses are reinforced with spring coils made of high-strength steel wire and are designed for high-pressure hydraulic systems.
difference between 4sp and 4sh hoses blog
Technical characteristics of 4SH high-pressure hoses
The operating parameters of hoses in the 4SH category meet the requirements of EN ISO 1402, including indicators such as maximum pressure and abrasion resistance. In order to select a hose suitable for the working conditions, the following characteristics of the hose need to be taken into account:
Nominal channel diameter. The indicator ranges from 19 to 51 mm, depending on the model. This parameter is reflected in the marking: Hose RVD 4SH 25, 32, 38, etc.
Working pressure. RVD 4SH - Extremely high-pressure hose. Depending on the inner diameter, this number ranges from 250 to 420 atmospheres.
Burst pressure. For hoses with four spiral reinforcement layers, this number ranges from 1100 to 1680 atmospheres.
Bending radius. This type of hose hose is not highly flexible. The indicator range is from 280 to 700 mm.
Operating temperature. Most 4SH hoses are suitable for operation in a temperature range of -40 to +100 degrees. A short-term increase to +120 degrees is possible.
Outer and inner diameter. Select according to the type of equipment and the outlet diameter.
You can buy the high-pressure hose 4 SH EN 856 in a standardized design or order it to be produced according to your individual parameters, contact us now!
