Polyether Based Polyurethane Pu Helix Duct Hose

Construction:

Wall:ย Topย gradeย polyetherย basedย polyurethane

Spiral: Rigid PC spiral

Temperature:

-40โ„ƒย (-104ย โ„‰ย )ย toย 90โ„ƒ๏ผˆ+150ย โ„‰๏ผ‰

Characteristic:

Good chemical resistance;

Bending radius is approximately equal to 3 times the Outer diameter, which can discharge static electricity .

Application:

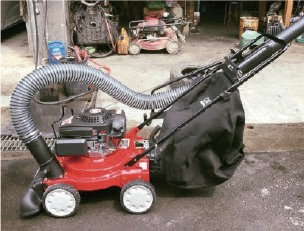

Designedย forย low-pressureย suctionย andย conveyingย ofย abrasiveย materialsย suchย asย granules,ย powders,ย garbageย andย dust.ย Suitableย forย woodwork- ing, pharmaceutical, plastic industries; vacuum cleaners, lawn mowers. It has good mold resistance and hydrolysis resistance.

Code Insideย Diameter

(mm)

 Wallย Thickness

mm

 Weight

kg/M

 Bendย Radius

mm

 Working

Pressure(Bar)

 Negativย e

Pressureย (Bar)

 Length(M)
TPURH-016 18 0.5 0.1 16 1.5 0.6 20
TPURH-020 20 0.5 0.14 20 1.5 0.6 20
TPURH-025 25 0.55 0.16 25 1.5 0.6 20
TPURH-030 30 0.55 0.195 30 1.5 0.6 20
TPURH-032 32 0.55 0.21 32 1.5 0.6 20
TPURH-035 35 0.55 0.24 35 1.5 0.6 20
TPURH-038 38 0.6 0.26 38 1.5 0.5 20
TPURH-040 40 0.6 0.265 40 1.5 0.5 20
TPURH-045 45 0.6 0.3 45 1.5 0.45 20
TPURH-050 50 0.6 0.335 50 1 0.45 20
TPURH-055 55 0.6 0.37 55 1 0.3 20
TPURH-060 60 0.6 0.405 60 1 0.3 20
TPURH-063 63 0.65 0.425 63 1 0.3 20
TPURH-065 65 0.65 0.46 65 1 0.3 20
TPURH-070 70 0.7 0.52 70 1 0.25 20
TPURH-075 75 0.7 0.58 75 1 0.25 20
TPURH-080 80 0.7 0.63 80 1 0.16 20
TPURH-090 90 0.7 0.75 90 1 0.16 20
TPURH-100 100 0.7 0.845 100 1 0.16 20
TPURH-102 102 0.7 0.88 102 0.8 0.16 20
TPURH-110 110 0.75 0.915 110 0.8 0.16 20
TPURH-120 120 0.75 1.025 120 0.8 0.16 20
TPURH-125 125 0.8 1.075 125 0.8 0.16 20
TPURH-140 140 0.85 1.28 140 0.6 0.16 20
TPURH-150 150 0.85 1.44 150 0.6 0.16 20
TPURH-160 160 0.9 1.6 160 0.5 0.16 20
TPURH-180 180 1 1.91 180 0.5 0.16 10
TPURH-203 203 1.1 2.225 200 0.4 0.16 10
TPURH-250 250 1.1 3 250 0.3 0.15 10
