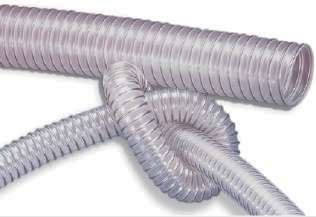

Polyether Based Polyurethane Pu Stainless Steel Duct Hose

Construction:

Wall: Top grade Anti-hydrolysis and anti-microbial polyether polyurethane

Spiral: Copper plated steel wire

Temperature:

-40℃ (-104 ℉ ) to 90℃（+150 ℉）

Characteristic:

Good chemical resistance;

Bending radius is approximately equal to 3 times the Outer diameter, which can discharge static electricity .

Application:

Suction or feeding of small particles, scraps, abrasive powders and chemical powders in gas and liquid environments. It is mainly used in food, medicine and indoor gas, powder, dust absorption and emission fields and has a wide range of uses. It can also be used as a protective sleeve.

Code Inside Diameter (mm) Outer Diameter (mm) Working Pressure(Bar) Vacuum Pressure (Bar) Bend Radius mm Weight kg/M Length(M)
TPUD-020 20 25 1.8 0.50 25 0.13 20
TPUD-025 25 32 1.6 0.36 32 0.17 20
TPUD-030 30 37 1.345 0.34 37 0.20 20
TPUD-032 32 39 1.26 0.34 39 0.21 20
TPUD-038 38 45 1.06 0.32 45 0.25 20
TPUD-040 40 47 1.015 0.3 47 0.28 20
TPUD-045 45 52 0.9 0.285 52 0.31 20
TPUD-050 50 58 0.815 0.26 58 0.36 20
TPUD-051 51 59 0.8 0.26 59 0.37 20
TPUD-060 60 68 0.68 0.21 68 0.43 20
TPUD-063 63 71 0.645 0.195 71 0.45 20
TPUD-065 65 73 0.63 0.18 73 0.47 20
TPUD-070 70 78 0.585 0.15 78 0.50 20
TPUD-075 75 83 0.545 0.14 83 0.53 20
TPUD-080 80 88 0.51 0.13 88 0.57 20
TPUD-090 90 98 0.455 0.115 98 0.63 20
TPUD-100 100 108 0.41 0.09 108 0.66 20
TPUD-102 102 110 0.4 0.09 110 0.68 20
TPUD-110 110 118 0.375 0.08 118 0.73 20
TPUD-115 115 123 0.355 0.08 123 0.76 20
TPUD-120 120 128 0.34 0.075 128 0.79 20
TPUD-125 125 133 0.33 0.06 133 0.82 20
TPUD-127 127 135 0.325 0.06 135 0.83 20
TPUD-130 130 138 0.315 0.06 138 0.85 20
TPUD-140 140 148 0.295 0.06 148 0.92 20
TPUD-150 150 158 0.275 0.055 158 0.98 20
TPUD-152 152 160 0.27 0.055 160 0.99 20
TPUD-160 160 168 0.255 0.05 168 1.04 20
TPUD-170 170 178 0.24 0.045 178 1.11 20
