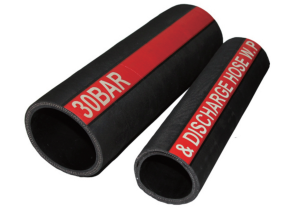

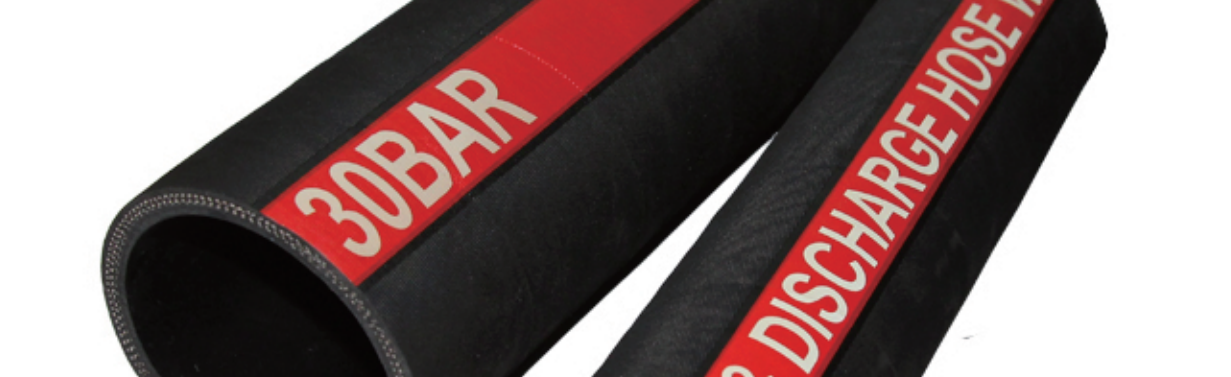

1. Tube: Black, smooth, Nitrile rubber.
2. Reinforcement: Multiple high-strength synthetic fabric
3. Cover: Black, wrapped surface, weather, and ozone-resistant, synthetic rubber
4. Application: Soft-wall hose Designed for
the discharge
5. of petroleum-based products, diesel, gasoline, lubricants, and fuel, with aromatic content up to 50%.
6.Temperature:-32ยฐC(-90ยฐF)to+82ยฐC(+180ยฐF)
| Code | I.D (inch) | I.D (mm) | O.D (mm) | W.P (bar) | W.P (psi) | B.P (bar) | B.P (psi) | L (m) | L (ft) |
| ODH012 | 1/2 | 12.7 | 21 | 10 | 150 | 30 | 450 | 61 | 200 |
| ODH016 | 5/8 | 15.9 | 24 | 10 | 150 | 30 | 450 | 61 | 200 |
| ODH019 | 3/4 | 19.1 | 29 | 10 | 150 | 30 | 450 | 61 | 200 |
| ODH022 | 7/8 | 22.2 | 31 | 10 | 150 | 30 | 450 | 61 | 200 |
| ODH025 | 1 | 25.4 | 35 | 10 | 150 | 30 | 450 | 61 | 200 |
| ODH032 | 1-1/4 | 31.8 | 42 | 10 | 150 | 30 | 450 | 61 | 200 |
| ODH038 | 1-1/2 | 38.1 | 48 | 10 | 150 | 30 | 450 | 61 | 200 |
| ODH050 | 2 | 50.8 | 62 | 10 | 150 | 30 | 450 | 61 | 200 |
| ODH064 | 2-1/2 | 63.5 | 76 | 10 | 150 | 30 | 450 | 61 | 200 |
| ODH076 | 3 | 76.2 | 89 | 10 | 150 | 30 | 450 | 61 | 200 |
| ODH089 | 3-1/2 | 88.9 | 103 | 10 | 150 | 30 | 450 | 61 | 200 |
| ODH100 | 4 | 101.6 | 116 | 10 | 150 | 30 | 450 | 61 | 200 |
| ODH125 | 5 | 127 | 142 | 10 | 150 | 30 | 450 | 30.5 | 100 |
| ODH150 | 6 | 152.4 | 167 | 10 | 150 | 30 | 450 | 30.5 | 100 |
| ODH200 | 8 | 203.2 | 223 | 10 | 150 | 30 | 450 | 30.5 | 100 |
