Pressure Washer Hoses
Pressure Washer Hoses
Pressure washer hoses are designed to transport your water from one place to the other for professional pressure washers.ย The high-quality frame is able to withstand extreme temperatures and pressures so you can safely and efficiently clean your workplace. A selection of high pressure hoses for pressure washers (also named Jet Washer Hoses, JET WASHING HOSE ) with lengths of 20 metres to 100 metres, available with and without quick release and various other connections. They are heavy-duty, high-strength, wire-braided, premium hoses designed for the high pressure cleaning industry, such as for power washing, pressure cleaning, sewer jetting, vehicle wash, and excavation.
1. Tube: Oil-resistant synthetic rubber
2. Reinforcement: 1/2 high-tensile steel wire braid
3. Cover: Abrasion-resistant synthetic rubber
4. Application: Transmit petroleum base or
water base hydraulic fluid oil.
5. Safety factor: 4:1
6. Temperature Range: -40 โ to 155 C

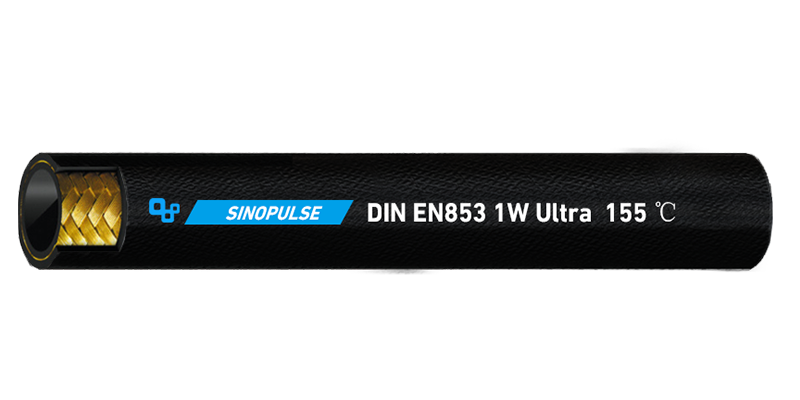

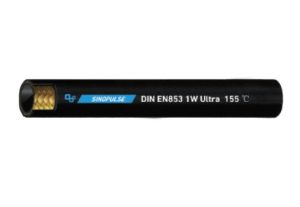

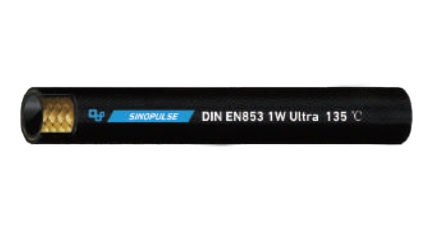

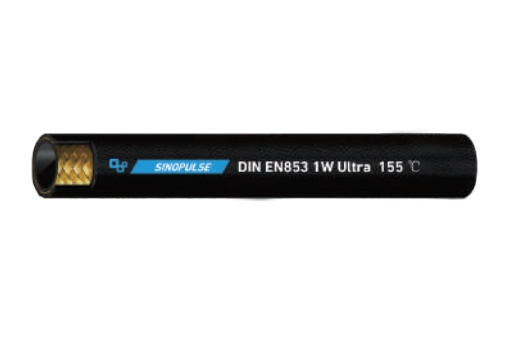

1WR JET WASHER HOSE
CONSTRUCTION:
Tube: high-strength synthetic rubber.
Reinforcement: One layer of high-strength steel wire mesh.
Cover: Anti-abrasive synthetic rubber, resistant to oils, fuels and
atmospheric conditions, black, blue, yellow, red, grey.
TEMPERATURE:
-40 ยฐC to +120 ยฐC (intermittently at 135 ยฐC)
APPLICATION:
Pressure washing industrial . MSHA and ISO9001:2015 and GOST and SGS Approved
| Part No. | I.D. (Inch) | I.D. (mm) | O.D. (mm) | W.P (MPa) | W.P (PSI) | B.P (MPa) | B.P (PSI) | B.R (mm) | W.T (kg/m) | ย |
| Pressure Washer Hoses-1WR-04 | 1/4" | 6.4 | 14.1 | 22.5 | 3263 psi | 90 | 13050 psi | 100 | 0.222 |  |
| Pressure Washer Hoses-1WR-05 | 5/16" | 7.9 | 15.7 | 21.5 | 3118 psi | 85 | 12325 psi | 115 | 0.261 | |
| Pressure Washer Hoses-1WR-06 | 3/8" | 9.5 | 18.1 | 18 | 2610 psi | 72 | 10440 psi | 130 | 0.324 | |
| Pressure Washer Hoses-1WR-08 | 1/2" | 12.7 | 21.5 | 16 | 2320 psi | 64 | 9280 psi | 180 | 0.418 |

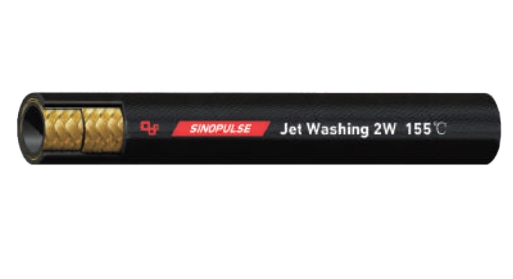

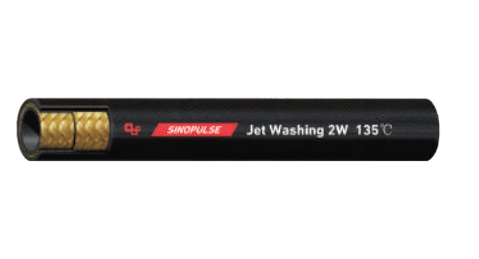

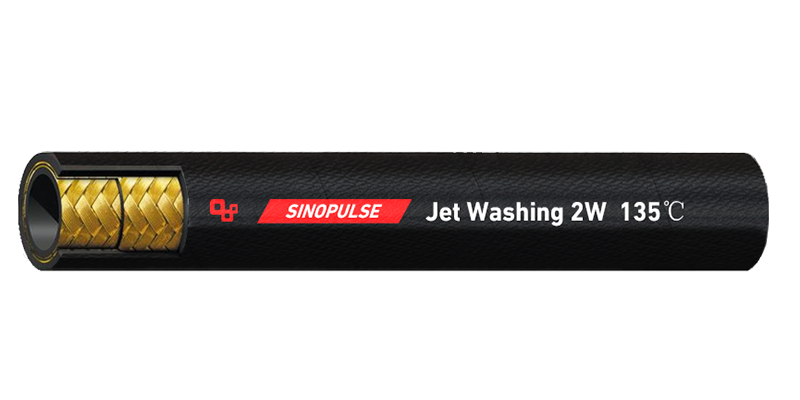

2WR JET WASHER HOSE
CONSTRUCTION:
Tube: High-strength synthetic rubber.
Reinforcement: Two layers of high-strength steel wire mesh.
Cover: Anti-abrasive synthetic rubber, resistant to oils, fuels and atmospheric conditions, Black,blue, yellow, red, grey.
TEMPERATURE:
-40ยฐC to +100ยฐC (intermittent 135ยฐC).
APPLICATION:
Mineral and biological oils, water-glycol based, water, lubricants.
MSHA and ISO9001:2015 and GOST and SGS Approved
| Part No. | I.D. (Inch) | I.D. (mm) | O.D. (mm) | W.P (MPa) | W.P (PSI) | B.P (MPa) | B.P (PSI) | B.R (mm) | W.T (kg/m) |
| Pressure Washer Hoses-2WR-04 | 1/4" | 6.4 | 15.7 | 40 | 5800 | 160 | 23200 | 100 | 0.342 |
| Pressure Washer Hoses-2WR-05 | 5/16" | 7.9 | 17.3 | 35 | 5075 | 140 | 20300 | 115 | 0.403 |
| Pressure Washer Hoses-2WR-06 | 3/8" | 9.5 | 19.7 | 33 | 4785 | 132 | 19140 | 125 | 0.491 |
| Pressure Washer Hoses-2WR-08 | 1/2" | 12.7 | 23 | 27.5 | 3988 | 110 | 15950 | 180 | 0.646 |
industries and applications require pressure washer hoses
Applications include:
- Car washes
- Car dealerships
- Food processing plants
- Beverage production
- Dairy industry
- Catering
- Agriculture & farming
- Pharmaceutical
- Pumps
- Council cleaning departments
What is a Jetter Hose?
A jetting hose is a specially designed hose that delivers water at high pressure to clean drains, culverts, and pipes. A high-quality sewer jetting hose needs to be durable, kink-resistant, and break-resistant. No jetting hose will last forever, but using the right safety tools, such as a tiger tail holder and guide hose, will significantly increase the life and safety of the hose.
Types of Jetter Hose
These hoses all come in different lengths and diameters. These sizes include 1-inch, 3/4-inch, 3/8-inch, 5/8-inch, and more. To determine what size hose you need, you need to look at the size of pipe you primarily use.
Care and Maintenance for Hoses
The most important thing to remember when using a jetting hose is that the life and durability of the hose is almost entirely dependent on how carefully you use the hose. Using safety tools such as a tiger tail, manhole roller, or manhole protector is a must. The most dangerous risk to a hose is rubbing against the sharp edges of a pipe or manhole while jetting. Over time, this abrasion can cause small wear and tear on the hose, which can lead to dangerous hose bursts. The general life of a well-maintained jetting hose is about one year, but can be shortened or extended based on customer precautions.
Accessories for Jetter Hoses
Mounted Mini Reel Kit: The mini jetter hose reel easily mounts to a tool box or back rail, allowing your jetter to clean smaller residential pipes
Tiger Tail Bracket: Thread your high-pressure hose through this protective tube to prevent your expensive high-pressure hose from rubbing against the sharp edges of the pipe.
Guide Hose: This short hose should be attached to the end of the jetting hose and must be a different color to alert the operator when the nozzle is approaching the pipe entrance. It also serves as a cheaper, easily replaceable sacrificial hose.
What is a high pressure jetting hose?
Depending on the application, a jetting hose comes in many forms. Generally speaking, it is a special heavy-duty hose designed to withstand the high-pressure water used for jetting sewers. To maximize its life, the hose needs to be strong, durable, and kink-resistant.
How do I attach a nozzle to a jetting hose?
To attach your nozzle to your high pressure water hose, attach the nozzle straight to the male end of the hose and tighten with a wrench. Ensure it is very tight so there is no risk of the nozzle coming off the end of the hose during the jetting job. There is no need to use Teflon tape or something like it to seal the nozzle to the hose since the nozzles are often interchanged and therefore the tape would be wasted. pressure washer hose What is the pressure rating of a hose?
The pressure rating of a pressure washer hose varies based on the diameter of the hose. For example, a 3/8" diameter pressure washer hose has an operating pressure of 4800psi (2 wire pressure washer hose), 2700psi (1 wire pressure washer hose), and a 1/4" diameter pressure washer hose has an operating pressure of 5800psi (2 wire pressure washer hose), 3300psi (1 wire pressure washer hose).
Should I choose a single-wire, dual-wire, or multi-wire?
High pressure washer hoses come in a variety of sizes, lengths, and pressure capacities. These hoses are designed to withstand tremendous pressures. If you notice your current hose is leaking pressure or has any damage, you will need to replace it with a new one. For most home users, a single-wire high-pressure hose is sufficient. For commercial or hot water applications, consider purchasing a dual-wire hose or a high-pressure hose.
Do I need a special water jetting hose for high-pressure water jetting?
Yes. All high pressure jetting units require a special high pressure hose designed to withstand the PSI and GPM your machine is operating at.
Understanding hose diameter
The hose diameter determines the volume of water that can flow through it. A larger hose diameter allows for a higher flow rate, but it may reduce the water pressure. Most pressure washer hoses come in diameters of ยผ inch, 5/16 inch and even 3/8 inch.
