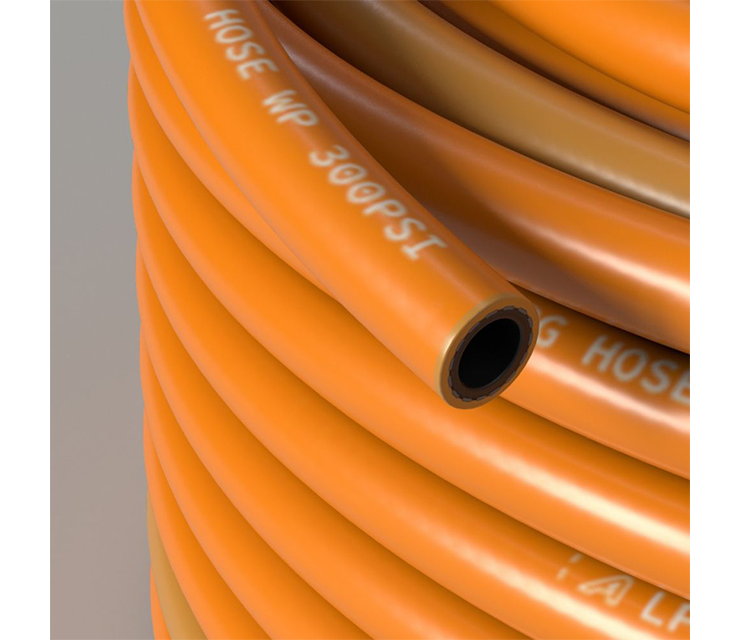

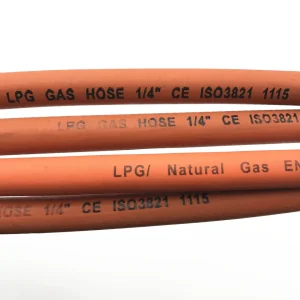

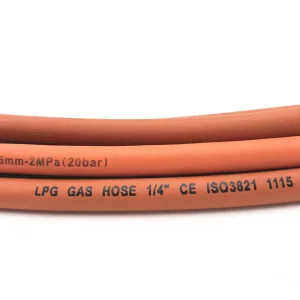

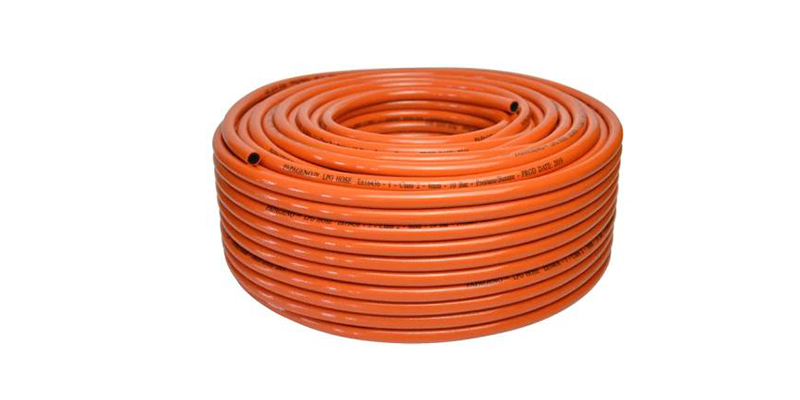

LPG Gas Hose (Propane Hose)
LPG Gas Propane Hose is designed for the delivery of liquefied petroleum gas.
LPG Gas Hose(Propane Hose)
An LPG gas hose, also known as an LPG gas hose, propane hose, or propane gas hose, is a specialized hose designed to safely transport and deliver liquefied petroleum gas (LPG) or propane gas. These hoses feature specialized fittings or connectors for secure and leak-free connections between the gas source and the appliances or equipment.
LPG Gas Hose(Propane Hose) is used to transport propane gas. This type of hose is typically made from rubber or synthetic materials and is designed to withstand the high pressure of propane gas. The hose is usually fitted with a regulator and safety valve to ensure the gas is delivered safely and at the correct pressure.

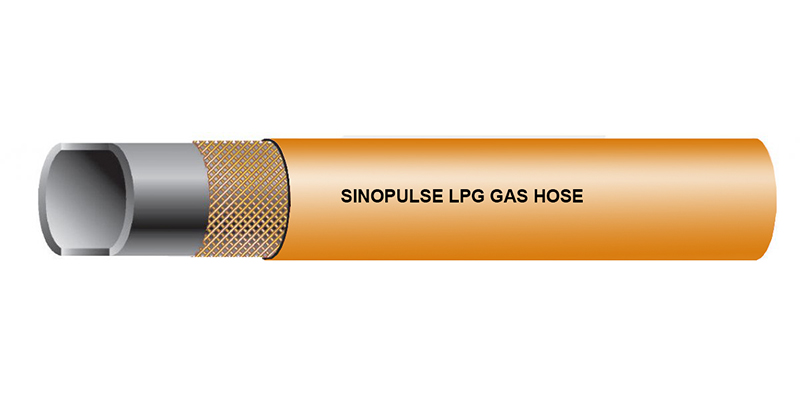

Tube:ย N.B.R., Nitrile Synthetic Rubber black, smooth
Reinforcement:ย textile braided high tensile synthetic yarn

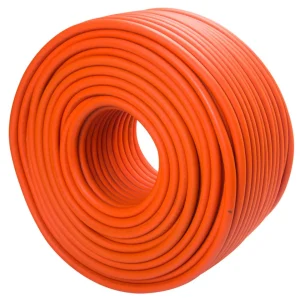

Cover:ย orange C.R. Synthetic Rubber, blended, ozone and weather resistant and abrasion-proof, smooth
Application: for the conveyance of liquid gas, home burner system, grill, oil-resistant
Temperature:ย -40โto~+90โ
Meets Requirements: UL, CGA and DOT requirements
|
I.D.
mm |
I.D.
inch |
Wall thickness
mm |
WP(bar)
|
BP(bar)
|
Bending radius(mm)
|
WEIGHT(kg/m)
|
|
5
|
3/16 inch
|
3.0
|
12
|
60
|
18
|
0.13
|
|
6
|
1/4 inch
|
3.5
|
12
|
60
|
20
|
0.15
|
|
8
|
5/16 inch
|
3.5
|
12
|
60
|
27
|
0.20
|
|
10
|
3/8 inch
|
3.5
|
12
|
60
|
33
|
0.26
|
Application:

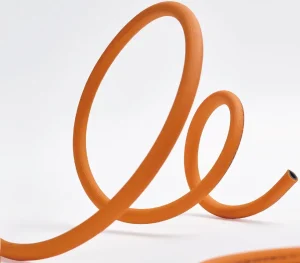

Dual purpose orange propane hose. Suitable for heavy duty gas welding hoses, offering excellent kink and crush resistance for cutting and welding applications using LPG, designed to convey propane, butane, or a combination of the two.
LPG Gas Hose suitable for caravans, motorhomes, patio BBQs and mobile gas heaters. Also suitable for connecting LPG cylinders to heating or cooking appliances. Very resistant to damage from contact with hot objects.
Related Product

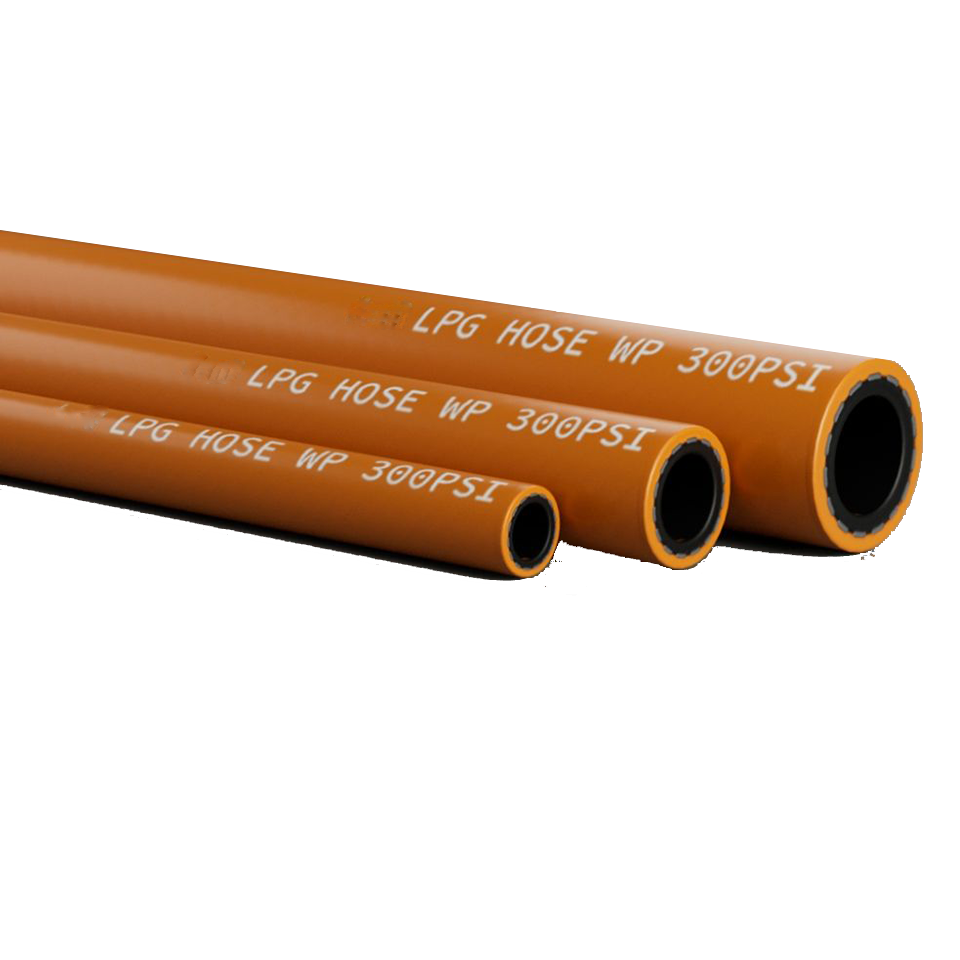

Reinforced Hose for LP-Gas and Natural Gas Applications
Sinopulse is a bulk supplier and manufacturer of reinforced hose for LP-Gas and Natural Gas applications. Our bulk hoses meet and exceed high quality UL and CSA standards. We offer hundreds of hose assembly combinations for use in RVs, landscaping, poultry houses, indoor and outdoor personal and industrial heaters, weed torches, and many other unique applications around the world.
Custom Solutions
Our in-house extrusion capabilities allow us to design hose products to meet your specific requirements. Each industry has different fitting, climate, durability, and national safety standards requirements that we have the ability to meet or exceed. We have received certifications to design and manufacture hose assemblies to UL 569, UL 21, and CSA 8.3 - these standards apply to thermoplastic hoses, hose fittings, and complete assemblies for use with LP-Gas and Natural Gas at specific pressures and temperatures.
You can browse our hose product offerings through the website. Choose from a variety of high or low pressure hoses in a variety of sizes. Contact our sales team to discuss your specific needs so we can work with you to provide the perfect solution.
Sinopulse Propane Hose FAQ
Q1: What size fitting is used on a propane hose?
A: The size of the fitting on a propane hose depends on the specific application. Common fitting sizes for propane hoses include 1/4" and 3/8" NPT (National Pipe Thread) or SAE flare fittings. Sinopulse offers a variety of fitting options to meet different customer requirements. For precise fitting recommendations, please refer to the product specifications or contact our customer service.
Q2: Can hydraulic hoses be used for propane?
A: No, hydraulic hoses should not be used for propane. Hydraulic hoses are designed to handle hydraulic fluids and pressures, but they are not constructed for the chemical properties and pressures involved in propane or other gaseous applications. Sinopulse recommends using hoses specifically designed for propane and gas applications for safety and performance.
Q3: Are propane and natural gas hoses the same?
A: No, propane and natural gas hoses are not the same. Although they may appear similar, they are designed for different types of gases, pressures, and chemical properties. Propane hoses are built to handle higher pressures and specific chemical interactions that occur with propane. Sinopulse offers specialized hoses for both propane and natural gas applications.
Q4: Can I use a natural gas hose for propane?
A: It is not recommended to use a natural gas hose for propane. Propane typically requires higher pressure ratings than natural gas, and using the wrong type of hose can result in safety hazards. Sinopulse manufactures hoses that are specifically designed for the pressures and chemical properties associated with propane.
Q5: Can acetylene hoses be used for propane?
A: No, acetylene hoses should not be used for propane. Acetylene hoses are designed for welding and cutting applications, and their materials and construction are not suitable for propane use. For propane applications, it is important to use hoses that meet industry standards for gas handling, such as those provided by Sinopulse.
Q6: How long is a propane truck hose?
A: The length of a propane truck hose can vary depending on the specific needs of the truck and its application. Common hose lengths range from 25 feet to 100 feet or more. Sinopulse offers customizable lengths for propane truck hoses to ensure they meet the operational requirements of each customer.
Q7: How do I make a propane hose?
A: Assembling a propane hose requires specialized knowledge, tools, and components, including propane-rated hose material, proper fittings, and secure crimping. Sinopulse strongly recommends purchasing pre-assembled propane hoses from certified manufacturers to ensure safety and compliance with industry standards. If you have specific requirements, our team can assist you in selecting the right pre-assembled propane hose for your application.
Q8: Who manufactures propane hoses?
A: Sinopulse is a leading manufacturer of high-quality propane hoses, offering a wide range of products tailored to meet the needs of various industries. Our propane hoses are designed for durability, safety, and performance in handling propane gas under high pressure. For more information on our propane hose offerings, please visit our product page or contact our sales team.
