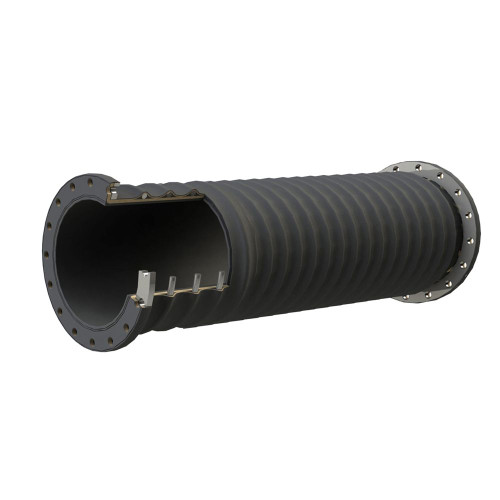

Mining Slurry Hose 150 Psi
Mining Slurry Hose 150 Psi
CONSTRUCTION:
Tube: Black NR/SBR rubber compound.
Reinforcement: Multi ply synthetic fabric with wire helix.
Cover:Black NR/SBR corrugated abrasion and weather resistant.
TEMPERATURE: -40ยฐC to +70ยฐC.
APPLICATION:
Slurry hoses are designed primarily for handling abrasive and viscous slurries from mine and quarries. They can also be used for handling dry materials such as sand, gravel and grains. The external bolt on the flanges allow for easy installation and uninterrupted free flow.
| Code | Inside Diameter | Outside Diameter | Working Pressure | Bursting Pressure | Length | Bend Radius | |||
| # | Inch | mm | mm | bar | psi | bar | psi | kgs/m | mm |
| MSH051 | 2" | 51 | 79.0 | 10 | 150 | 30 | 450 | 61 | 305 |
| MSH076 | 3" | 76 | 118.0 | 10 | 150 | 30 | 450 | 61 | 356 |
| MSH102 | 4" | 102 | 137.0 | 10 | 150 | 30 | 450 | 61 | 508 |
| MSH127 | 5" | 127 | 167.0 | 10 | 150 | 30 | 450 | 61 | 660 |
| MSH152 | 6" | 152 | 196.0 | 10 | 150 | 30 | 450 | 12 | 762 |
| MSH203 | 8" | 203 | 255.0 | 10 | 150 | 30 | 450 | 12 | 1727 |
| MSH254 | 10" | 254 | 302.0 | 10 | 150 | 30 | 450 | 12 | 1981 |
| MSH305 | 12" | 305 | 349.0 | 10 | 150 | 30 | 450 | 12 | 2489 |
| MSH355 | 14" | 355 | 416.0 | 10 | 150 | 30 | 450 | 12 | 2819 |
