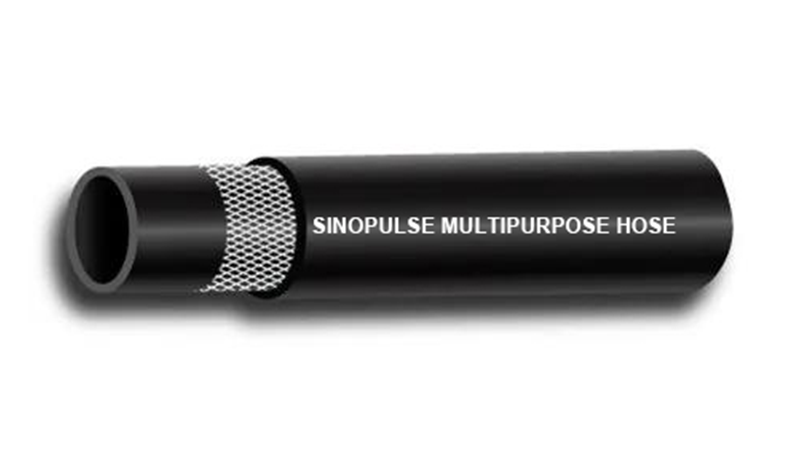

MULTIPURPOSE HOSE 300PSI (Smooth surface )
MULTIPURPOSE HOSE 300PSI (Smooth surface )
CONSTRUCTION:
Tube: NR & SBR synthetic rubber, black color.
Reinforcement: 1ply or 2ply high tensile polyester thread braiding
Cover: NR & SBR synthetic rubber,smooth or wrapped surface, black,yellow,red available
TEMPERATURE: -40ยฐC to +70ยฐC
APPLICATION:
For air, oil and medium grade fuels used in construction, shipyards, mining and agriculture.
| Code | Inside Diameter | Outside Diameter | Working Pressure | Bursting Pressure | Weight | Length | |||
| # | Inch | mm | mm | bar | psi | bar | psi | kgs/m | m |
| MULTIPURPOSE HOSE-005 | 3/16" | 4.8 | 12.0 | 20 | 300 | 60 | 900 | \ | 100 |
| MULTIPURPOSE HOSE-006 | 1/4" | 6.4 | 13.0 | 20 | 300 | 60 | 900 | 0.167 | 100 |
| MULTIPURPOSE HOSE-008 | 5/16" | 7.9 | 15.0 | 20 | 300 | 60 | 900 | 0.220 | 100 |
| MULTIPURPOSE HOSE-010 | 3/8" | 9.5 | 17.0 | 20 | 300 | 60 | 900 | 0.270 | 100 |
| MULTIPURPOSE HOSE-012 | 1/2" | 12.7 | 23.0 | 20 | 300 | 60 | 900 | 0.370 | 100 |
| MULTIPURPOSE HOSE-016 | 5/8" | 15.8 | 25.5 | 20 | 300 | 60 | 900 | 0.500 | 100 |
| MULTIPURPOSE HOSE-019 | 3/4" | 19.1 | 30.0 | 20 | 300 | 60 | 900 | 0.650 | 100 |
| MULTIPURPOSE HOSE-025 | 1" | 25.4 | 37.0 | 20 | 300 | 60 | 900 | 0.850 | 50 |
| MULTIPURPOSE HOSE-032 | 1-1/4" | 31.8 | 46.0 | 20 | 300 | 60 | 900 | \ | 50 |
