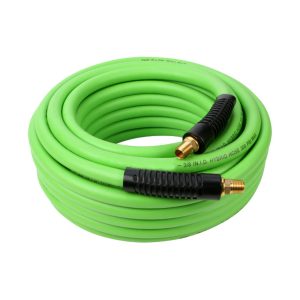

HYBRID AIR HOSE 300psi
HYBRID AIR HOSE 300psi
CONSTRUCTION:
Tube : Specialized blend of rubber and pvc
Reinforcement: high tensile polyester braiding
Cover:Specialized blend of rubber and pvc
TEMPERATURE: -10ยฐC to +65ยฐC
APPLIABLE REFRIGERANT: The hybrid air hose is widely used in pneumatic tools, air compressors,automated air line, air supply,cleaning equipment, construction equipment and so on.
| Code | I.D | O.D | Working Pressure | Bursting Pressure | Length | Weight | Packing | |||
| inch | mm | mm | psi | bar | psi | bar | ft/roll | kg/pc | m3/roll | |
| HYBA-0625 | 1/4" | 6 | 12 | 300 | 20 | 900 | 60 | 25 | 0.90 | 43x22x51 |
| HYBA-0650 | 1/4" | 6 | 12 | 300 | 20 | 900 | 60 | 50 | 1.80 | 31x31x50 |
| HYBA-0825 | 5/16" | 8 | 14 | 300 | 20 | 900 | 60 | 25 | 1.10 | 48x24x57 |
| HYBA-0850 | 5/16" | 8 | 14 | 300 | 20 | 900 | 60 | 50 | 2.20 | 33x33x58 |
| HYBA- 1025 | 3/8" | 9.5 | 15.5 | 300 | 20 | 900 | 60 | 25 | 1.25 | 51x25x65 |
| HYBA- 1050 | 3/8" | 9.5 | 15.5 | 300 | 20 | 900 | 60 | 50 | 2.50 | 35x35x65 |
| HYBA- 1075 | 3/8" | 9.5 | 15.5 | 300 | 20 | 900 | 60 | 75 | 3.80 | 35x35x50 |
| HYBA- 10100 | 3/8" | 9.5 | 15.5 | 300 | 20 | 900 | 60 | 100 | 5.00 | 38x38x50 |
