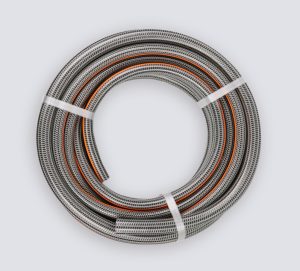

PVC Anti-Torsion Knitted Garden Hose
CONSTRUCTION:
Tube:PVC(Non-toxic)
Reinforcement:high tensile polyester knitted
Cover: PVC(Non-toxic)
TEMPERATURE: -10ยฐC to +65ยฐC
APPLIABLE REFRIGERANT: Being widely used for garden watering and car washing,household cleaning, in the parks,community,factories and families.
| Code | I.D | O.D | Working Pressure | Bursting Pressure | Length | Weight | Volume | |||
| inch | mm | mm | psi | bar | psi | bar | ft/roll | kg/pc | m3/roll | |
| KGH- 1216 | 1/2" | 12 | 16 | 145 | 10 | 435 | 30 | 50 | 6 | 0.019 |
| KGH- 1217 | 1/2" | 12 | 17 | 145 | 10 | 435 | 30 | 50 | 7.5 | 0.022 |
| KGH- 1620 | 5/8" | 15 | 20 | 116 | 8 | 348 | 24 | 50 | 9.2 | 0.03 |
| KGH- 1621 | 5/8" | 15 | 21 | 116 | 8 | 348 | 24 | 50 | 11.7 | 0.032 |
| KGH- 1924 | 3/4" | 19 | 24 | 102 | 7 | 306 | 21 | 50 | 11.6 | 0.043 |
| KGH- 1925 | 3/4" | 19 | 25 | 102 | 7 | 306 | 21 | 50 | 14.5 | 0.045 |
| KGH-2530 | 1" | 25 | 30 | 102 | 7 | 306 | 21 | 50 | 14.8 | 0.068 |
| KGH-2531 | 1" | 25 | 31 | 102 | 7 | 306 | 21 | 50 | 18.2 | 0.072 |
