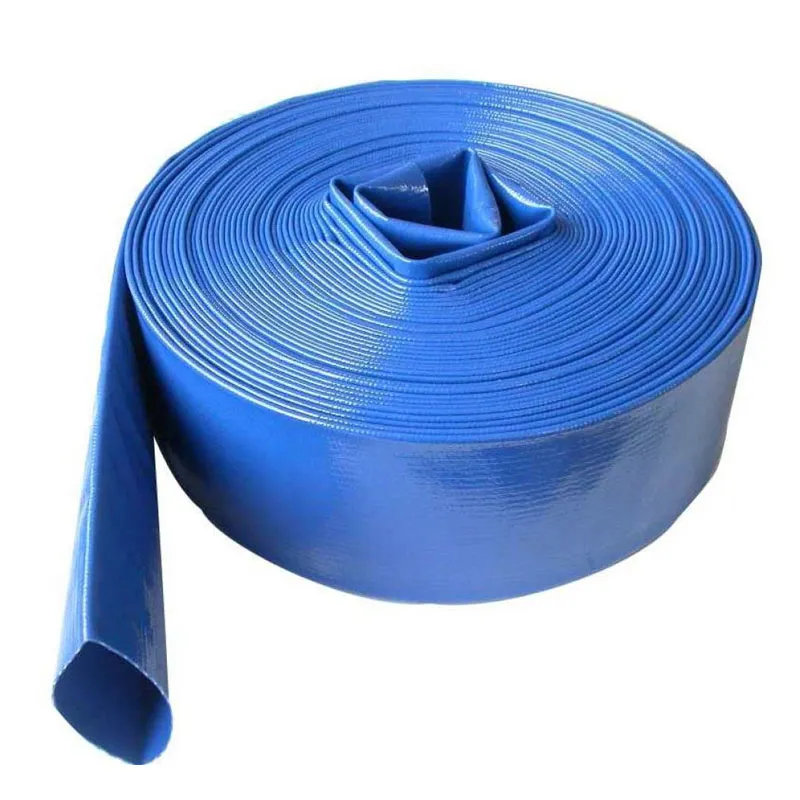

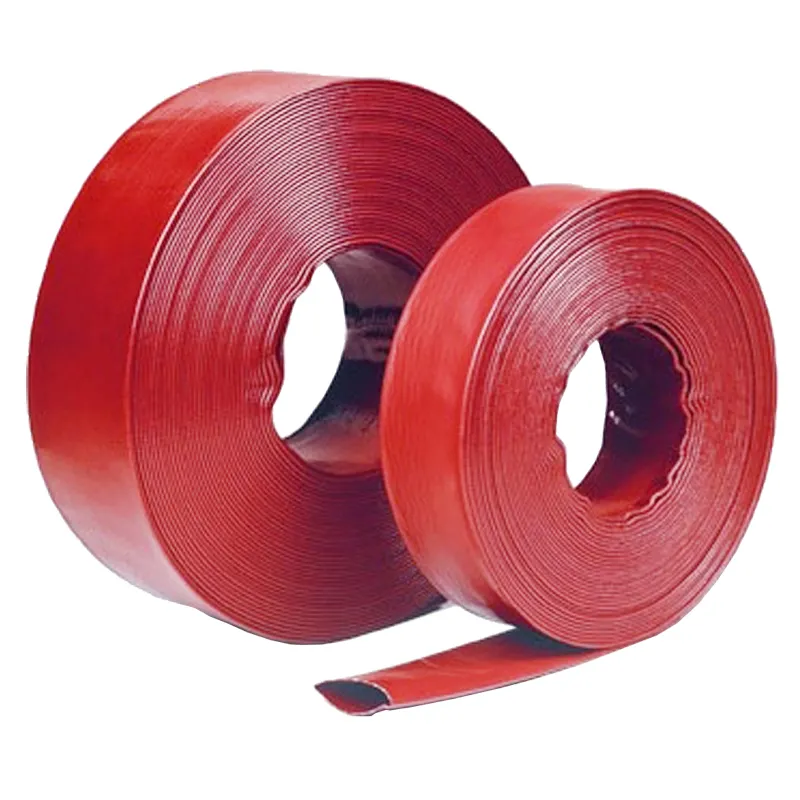

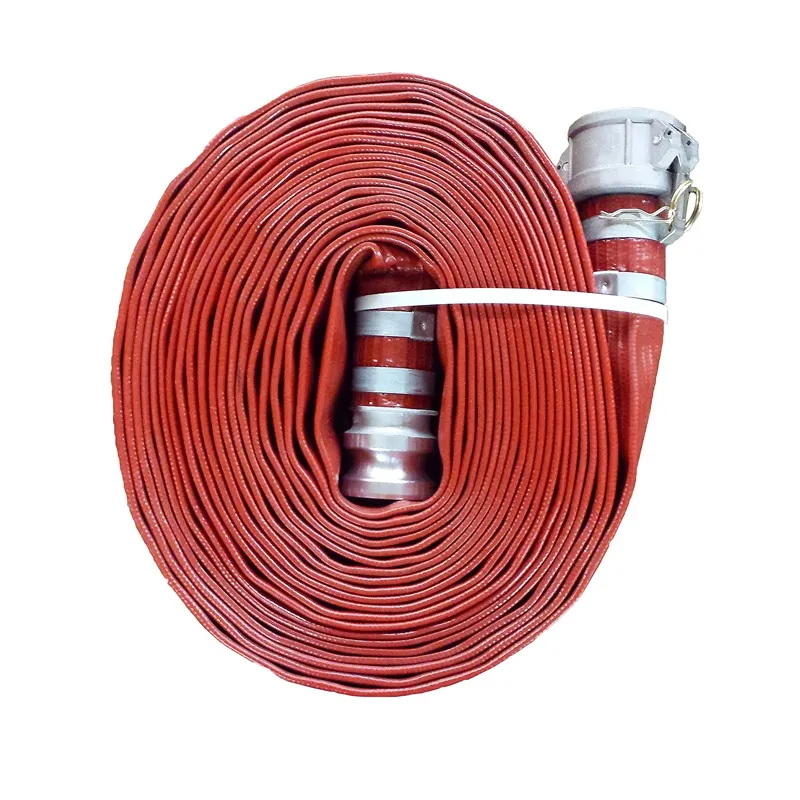

PVC Lay Flat Hose
PVC Lay Flat Hose is a flexible, reinforced hose used in the agricultural, industrial, and construction industries to transport water, chemicals, and other liquids. It is made from a combination of polyvinyl chloride (PVC) and reinforced with high-tensile synthetic yarn or cord. It has the advantages of being lightweight, having good flexibility, bright color, anti-corrosion, anti-aging, wear-resistant, anti-ultraviolet, etc. It is available in various sizes and colors; It is widely used in agricultural irrigation, garden irrigation, water delivery, water discharge, etc.
PVC lay flat hosesย Applications
PVC lay flat hoses are used in a variety of applications, including:
- Agriculture: Irrigation of crops and watering of livestock.
- Mining: Transfer of water and other liquids in mining operations.
- Construction: Delivery of water and other liquids to construction sites.
- Fire Fighting: Supply of water in fire fighting operations.
- Disaster Relief: Delivery of water and other liquids in disaster relief operations.
- Industrial: Transfer of water and other liquids in industrial operations.
These hoses are often used in vehicles such as water trucks, firefighting trucks, and irrigation vehicles, among others. They can be easily transported, deployed, and stored, making them a convenient option for a variety of applications.
PVC lay flat hosesย Details
Tube: Non-toxic clear, flexible PVC.
Reinforcement: High tensile synthetic fiber braiding.
Cover: Non-toxic clear, flexible PVC.
Temperature range: -10โ(-50โ)to + 60ยฐC (+ 140ยฐF)
PVC lay flat hosesย Characteristics:
Lightweight, Good flexibility.
Corrosion-resistant,anti-aging.
Easy handle & storage.
Various colors are available.
Assemblies or cut lengths are available.
Non-toxic, Non-smell
Burst pressure three times working pressure.
Standard Duty PVC Lay Flat Hose 60 PSI
|
Part No.
|
I.D.
|
W.P.
|
B.P.
|
Length
|
Weight
|
Volume
|
|||
|
inch
|
mm
|
psi
|
bar
|
psi
|
bar
|
m/roll
|
kg/m
|
m3
|
|
|
LFHS20
|
3/4"
|
20
|
58
|
4
|
218
|
15
|
100
|
0.14
|
0.014
|
|
LFHS25
|
1"
|
25
|
58
|
4
|
218
|
15
|
100
|
0.15
|
0.019
|
|
LFHS32
|
1-1/4"
|
32
|
58
|
4
|
218
|
15
|
100
|
0.17
|
0.023
|
|
LFHS38
|
1-1/2"
|
38
|
58
|
4
|
218
|
15
|
100
|
0.21
|
0.026
|
|
LFHS51
|
2"
|
51
|
58
|
4
|
174
|
12
|
100
|
0.23
|
0.039
|
|
LFHS64
|
2.5"
|
64
|
58
|
4
|
174
|
12
|
100
|
0.32
|
0.047
|
|
LFHS76
|
3"
|
76
|
58
|
4
|
174
|
12
|
100
|
0.36
|
0.06
|
|
LFHS102
|
4"
|
102
|
58
|
4
|
174
|
12
|
100
|
0.55
|
0.083
|
|
LFHS125
|
5"
|
127
|
58
|
4
|
174
|
12
|
100
|
0.75
|
0.109
|
|
LFHS153
|
6"
|
153
|
58
|
4
|
174
|
12
|
100
|
0.9
|
0.141
|
|
LFHS203
|
8"
|
203
|
58
|
4
|
174
|
12
|
100
|
1.8
|
0.193
|
|
LFHS254
|
10"
|
254
|
58
|
4
|
174
|
12
|
50
|
2.6
|
0.178
|
|
LFHS305
|
12"
|
305
|
58
|
4
|
174
|
12
|
50
|
3.1
|
0.245
|
Medium Duty PVC Lay Flat Hose 6 Bar/90PSI
|
Part No.
|
I.D.
|
W.P.
|
B.P.
|
Length
|
Weight
|
Volume
|
|||
|
inch
|
mm
|
psi
|
bar
|
psi
|
bar
|
m/roll
|
kg/m
|
m3
|
|
|
LFHM19
|
3/4"
|
20
|
87
|
6
|
305
|
21
|
100
|
0.14
|
0.014
|
|
LFHM25
|
1"
|
25
|
87
|
6
|
305
|
21
|
100
|
0.17
|
0.019
|
|
LFHM32
|
1-1/4"
|
32
|
87
|
6
|
305
|
21
|
100
|
0.19
|
0.023
|
|
LFHM38
|
1-1/2"
|
38
|
87
|
6
|
305
|
21
|
100
|
0.24
|
0.026
|
|
LFHM40
|
1-1/2"
|
40
|
87
|
6
|
261
|
18
|
100
|
0.26
|
0.026
|
|
LFHM51
|
2"
|
51
|
87
|
6
|
261
|
18
|
100
|
0.3
|
0.039
|
|
LFHM64
|
2.5"
|
64
|
87
|
6
|
261
|
18
|
100
|
0.45
|
0.047
|
|
LFHM76
|
3"
|
76
|
87
|
6
|
261
|
18
|
100
|
0.5
|
0.06
|
|
LFHM102
|
4"
|
102
|
87
|
6
|
261
|
18
|
100
|
0.9
|
0.083
|
|
LFHM125
|
5"
|
127
|
87
|
6
|
261
|
18
|
100
|
1.1
|
0.109
|
|
LFHM153
|
6"
|
153
|
87
|
6
|
261
|
18
|
100
|
1.8
|
0.141
|
|
LFHM203
|
8"
|
203
|
87
|
6
|
261
|
18
|
100
|
2.8
|
0.193
|
Heavy Duty PVC Lay Flat Hose 10Bar /150PSI
|
Part No.
|
I.D.
|
W.P.
|
B.P.
|
Length
|
Weight
|
Volume
|
|||
|
inch
|
mm
|
psi
|
bar
|
psi
|
bar
|
m/roll
|
kg/m
|
m3
|
|
|
LFHH76-1
|
3"
|
76
|
116
|
8
|
348
|
24
|
50
|
0.66
|
0.03
|
|
LFHH102
|
4"
|
102
|
116
|
8
|
348
|
24
|
50
|
1
|
0.042
|
|
LFHH153
|
6"
|
153
|
116
|
8
|
348
|
24
|
50
|
2.2
|
0.071
|
|
LFHH203
|
8"
|
203
|
116
|
8
|
348
|
24
|
50
|
2.8
|
0.01
|
PVC Lay Flat Hose Applications:
PVC lay flat hose is designed for light and heavy-duty applications. The hoses are most commonly used in agricultural equipment where continuous water flow through irrigation systems is required. Other applications include water pumps, pools & spas, construction, mines, and marine.
Layflat Hose Supplier | Sinopulse
Sinopulse Lay Flat Discharge Hose, commonly referred to as โlay flat hoseโ, โdischarge hoseโ, โbackwash hose โ and โflat hoseโ is perfect for use with water, light chemicals and other agricultural, irrigation and construction fluids.
Our Layflat hoses are designed and manufactured to meet customer expectations for performance such as pressure, elongation, twisting, diameter expansion, tensile strength, outer layer and liner thickness. Our experienced and dedicated staff employs process controls during manufacturing processes such as reinforcement, fabric braiding and fabric extrusion. Each hose is hydrostatically tested before shipment and comes with an individual hose identification to allow for manufacturing and material traceability.
