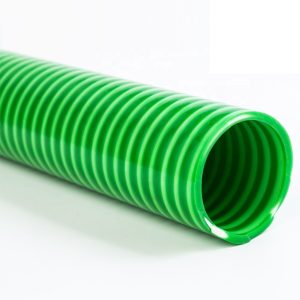

Low Temperature PVC Helix Suction & Discharge Hose
Low Temperature PVC Helix Suction & Discharge Hose
CONSTRUCTION:
High quality pvc with rigid pvc helix
TEMPERATURE: -10ยฐC to +65ยฐC
APPLIABLE REFRIGERANT: Low temerature pvc suction hose is used under extreme cold conditions,it is designed for Pumps,rental and construction dewatering,Water suction.
| Code | I.D | O.D | Wall Thickness | Working Pressure | Bend Radium | Length | Volume | ||
| inch | mm | mm | mm | bar | psi | mm | m | m3/roll | |
| PSHLT019 | 3/4" | 19.0ยฑ0.5 | 25.0ยฑ0.5 | 3.0 | 5.0 | 75 | 70 | 50 | 0.072 |
| PSHLT025 | 1" | 25.4ยฑ0.5 | 31.4ยฑ0.5 | 3.0 | 5.0 | 75 | 70 | 50 | 0.090 |
| PSHLT032 | 1-1/4" | 31.7ยฑ0.5 | 37.7ยฑ0.5 | 3.0 | 5.0 | 75 | 90 | 50 | 0.147 |
| PSHLT038 | 1-1/2" | 38. 1ยฑ0.5 | 45. 1ยฑ0.5 | 3.5 | 5.0 | 75 | 110 | 50 | 0.192 |
| PSHLT050 | 2" | 50.8ยฑ1.0 | 58.8ยฑ1.0 | 4.0 | 5.0 | 75 | 150 | 50 | 0.250 |
| PSHLT065 | 2-1/2" | 63.5ยฑ1.0 | 72.5ยฑ1.0 | 4.5 | 4.0 | 60 | 180 | 50 | 0.463 |
| PSHLT075 | 3" | 76.2ยฑ1.0 | 86.2ยฑ1.0 | 5.0 | 4.0 | 60 | 220 | 50 | 0.730 |
| PSHLT100 | 4" | 101.6ยฑ1.5 | 103.6ยฑ1.5 | 6.0 | 4.0 | 60 | 330 | 50 | 1.400 |
| PSHLT125 | 5" | 127.0ยฑ1.5 | 141.0ยฑ1.5 | 7.0 | 3.0 | 45 | 500 | 50 | 2.220 |
| PSHLT152 | 6" | 152.4ยฑ1.5 | 168.4ยฑ1.5 | 8.0 | 3.0 | 45 | 700 | 30 | 1.850 |
