Twin Welding Hose
Twin welding hose, also known as Twin line welding tube, is used in welding applications. It consists of two colored hoses connected to connect the welder to oxygen/acetylene welding supply. Commonly used inside diameter is 1/4 inch and length is 50 feet. As a factory, we can customise the I.D. and length you need.
Temperature range: -40ยฐF to 120ยฐF (-40ยฐC to 49ยฐC)
Structural Tube: EPDM synthetic rubber
Cover: EPDM synthetic rubber, Blue/green/red, smooth, synthetic rubber
Reinforcement:High strength synthetic yarn braiding
When the twin-line welding hose is used, red and green are usually used to distinguish the gas used. The red hose is used to transport acetylene gas, and the green hose is used to transport oxygen.
The design of the double-welded soft tube is flexible, and due to the needs of the working environment, it needs to have heat, wear, and chemical resistance.
Twin welding hoses are usually made of rubber or PVC. It is used in various welding applications, including MIG and TIG welding.
Features
EPDM cover layer resists abrasion, heat, temperature and chemicals, and ozone
Multi-layer textile reinforcement provides flexibility
| I.D. | Wall | O.D. | ย W.P. | B.P. | Min. B.R. | Length Max. | Weight | |||
| Inch | mm | mm | mm | Mpa | Psi | Mpa | Psi | mm | M | Kg/m |
| 3/16" | 5 | 3.5 | 12 | 2 | 300 | 6 | 900 | 30 | 100 | 0.31 |
| 1/4" | 6 | 3.5 | 13 | 2 | 300 | 6 | 900 | 35 | 100 | 0.37 |
| 5/16" | 8 | 3.5 | 15 | 2 | 300 | 6 | 900 | 50 | 100 | 0.42 |
| 3/8" | 9 | 3.5 | 16 | 2 | 300 | 6 | 900 | 60 | 100 | 0.49 |
| 3/8" | 10 | 3.5 | 17 | 2 | 300 | 6 | 900 | 60 | 100 | 0.55 |
| 1/4"+5/16" | 6+8 | 3.5 | 13+15 | 2 | 300 | 6 | 900 | 35 | 100 | 0.39 |
| 5/16"+3/8" | 8+10 | 3.5 | 15+17 | 2 | 300 | 6 | 900 | 60 | 100 | 0.47 |

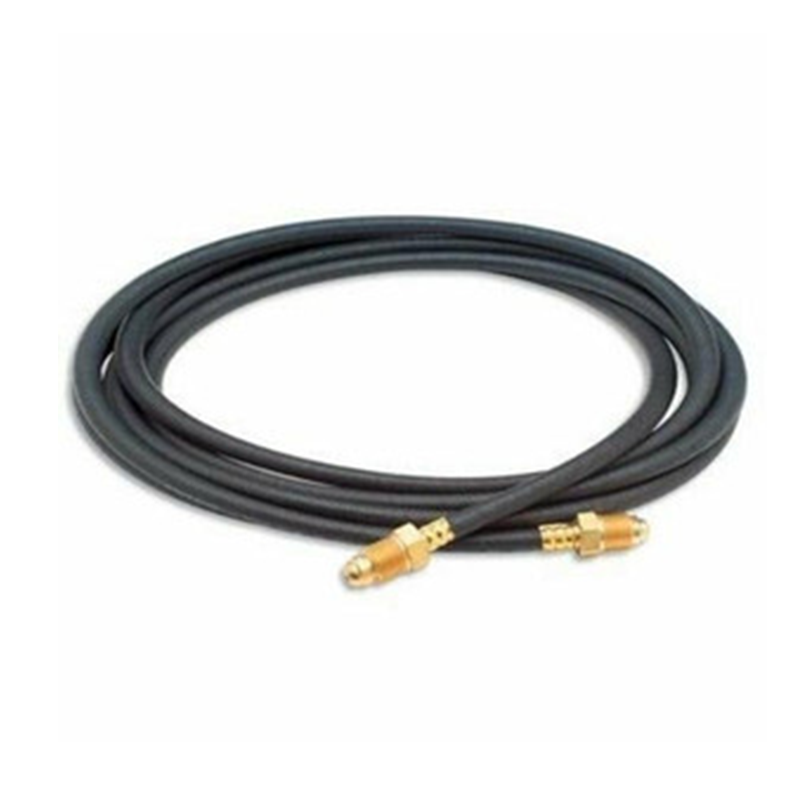

1/4 inch Black Inert Argon Welding Hose Assembly

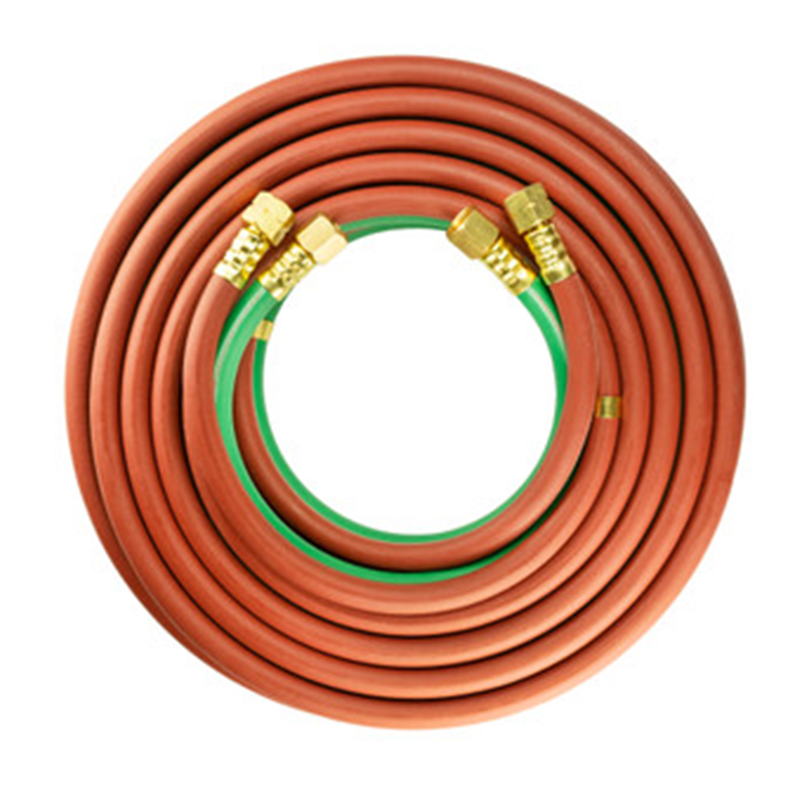

1/4 inch Grade T Twin BB Welding Hose
1/4 in Twin Welding Hose
3/8 inch ID Twin Welding Hoses
Related Product
Our hydraulic hoses include:
SAE 100 series, EN series (EN 853, EN 854, EN 855, EN 856 4 , EN 857), ISO series (1436, ISO 11237, ISO 1437) and hydraulic fittings
Our automotive hoses include:
Air Conditioner Hose, Air Brake Hose, Silicone Hose, EPDM Hose, Radiator Hose, Engine Water Hose, Warm Air Hose, Fuel Hose, Oil Hose, Power Steering Pressure Hose, Return Hose, hose clamps
Our PVC hoses include:
PVC Reinforced Hose, PVC Clear Hose, PVC Garden Hose, PVC Gas Hose, PVC Air Hose, PVC Spray Hose, PVC Lay Flat Hose, PVC Suction Hose
Designed for welding, cutting, and industrial applications, our high-quality gas hoses ensure safe, reliable gas flow.
Durable and flexible, these hoses connect securely to your welding equipment to deliver oxygen, acetylene, argon, and other gases with consistent pressure and performance.
Made from strong, kink-resistant materials, our gas hoses provide long-lasting reliability, even in harsh environments.
Available in a variety of sizes and lengths to fit a variety of needs, these hoses are essential for professionals and amateurs alike.
Upgrade your equipment with gas hoses that provide secure connections and reliable performance on every project.
Our welding and gas hoses are extremely flexible, resistant to ageing and weathering, have a smooth surface and are not susceptible to stains.
They offer maximum safety in hose technology to installation and heating system companies, building construction and civil engineering, welding shops, welding equipment manufacturers, body builders, bridge and steel construction engineering and shipyards.
Medium: oxygen/acetylene/liquefied petroleum gas/other fuel gases.
Why Sinopulse Twin Welding Hose
Sinopulse is a top rubber twin welding hose manufacturer in China. Our factory has several advanced hydraulic hose production lines, using high-quality rubber raw materials to ensure that the quality of the hose has always been at the top level in the same industry and has been recognized and praised by customers at home and abroad.
Our factory has several advanced hydraulic hose production lines, using high-quality rubber raw materials to ensure that the quality of the hose has always been at the top level in the same industry and has been recognized and praised by customers at home and abroad.
Our factory has passed authoritative certifications, such as ISO9001: 2008 quality system certification, CE, SAE, Din EN, etc., so you can flexibly order products according to your needs.
Our twin welding hoses are produced quickly and delivered on time, always thinking about customers, helping you increase your local market share and grow together.
What is the purpose of a Twin line welding hose?
Twin line welding hose, also called Twin welding hose, is mainly used to transport oxygen and gas in welding, cutting, and related processes. It consists of two hoses, red and green. The green one delivers oxygen, and the red one provides gas (propane, propylene, hydrogen, etc.). This hose is designed to distinguish between oxygen and gas and can also be delivered to welding equipment simultaneously to achieve efficient and safe welding and cutting.
What is the difference between Grade R & Grade T Twin Welding Hose?
Grade R: It is designed and recommended for both acetylene and oxygen. Until about 15 years ago, it was the only grade of Twin Welding Hose available. It is not recommended for use with LPG, propane, natural gas or propylene. The reason propane is not recommended is that the oil in propane will eventually dry rot the hose. This usually takes about 1 year to occur. The surface of the hose will crack and lose its flexibility. This can be a very unsafe condition and requires immediate replacement of the hose. Class R hose is not unsafe from the start, but it will have a shorter life. Hose longevity is important to some cutters and welders and not to others. R-rated double-welded hose is cheaper, which means a lot to some users. Regardless of the grade, their hose usually won't last a year.
Grade T: Grade T double-welded hose is designed for use with alternative fuels such as LPG, propane, natural gas and propylene. However, it can also be used with acetylene. It is more expensive than Grade R because it resists the effects of oil in propane. Although T-rated can be used with โall gasesโ, it is recommended to change the hose when switching between acetylene and alternative gases. This is because residual oil in propane can seep into the pores of the hose.
What is the scope of application of Grade R and Grade T Twin welding hoses?
- Transport
Grade T Twin welding hose can transmit more gas, including propane, propylene, hydrogen, etc.
Grade R Twin welding hose is mainly suitable for conveying acetylene gas. - Application
Grade T twin welding hose has a broader application range and higher safety and is suitable for industrial welding applications.
Grade R Twin Welding Hose is better suited for general welding and cutting, household, and minor engineering projects.
How to sell rubber twin welding hose?
We have two ways of supply: provide rubber twin welding hose assembly and wholesale by rubber twin welding hose roll.
As long as you provide the required size, requirements, etc., our hose factory can supply
