6-Wire Hydraulic Hose
Sinopulse is one of the leading 6-wire hydraulic hose factories in China, we can supply quality and high-pressure hoses for you.Make ensure your safety in any application.
From high-grade materials to competitive pricing, the Sinopulse line of 6-wire hydraulic hoses offers both quality and affordability to suit your business needs.

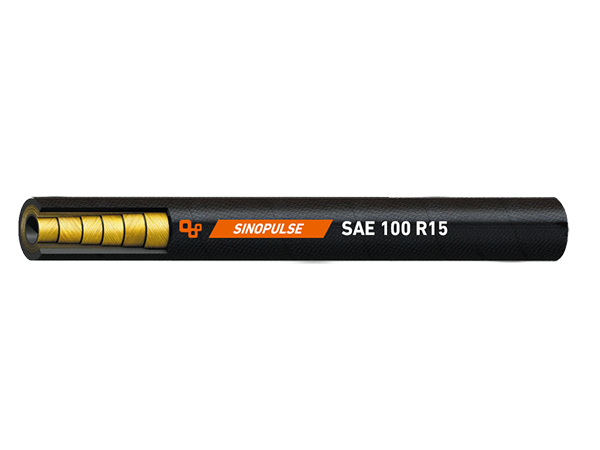

CONSTRUCTION:
Tube: High-strength synthetic rubber.
Reinforcement: 6 layers of spiral from size 1-1/4'' to 2''.
Cover: Anti-abrasive synthetic rubber, resistant to oils, fuels, and atmospheric conditions.
This 4- and 6-wire construction hose comes with 5100 psi operating pressure in all sizes and is recommended for use on critical applications in construction, forestry, and other off-highway vehicles. Now featuring 4S/6S Spiral Hose Fittings for world-class performance.
Specs:ย SAE 100R13, ISO 3862...
This 4- and 6-wire construction hose comes with 6100 psi operating pressure in all sizes and is recommended for use in extreme-duty applications on construction equipment, oil and gas rigs, mining equipment, and other high-pressure applications. Now featuring 4S/6S Spiral Hose Fittings for world-class performance.
<...
TEMPERATURE:
-40ยฐC to +120ยฐC (intermittent 125ยฐC)
APPLICATION:
Mineral and biological oils, water-glycol based, water, lubricants.
MSHA and ISO9001:2015 and GOST and SGS Approved

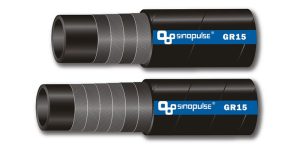

SAE 100 R15 Spiral Hydraulic Hose Technical Specifications
| Code | Size | Inside Diameter | Outside Diameter | Working Pressure | Bursting Pressure | Bend Radius | Weight | Length | Ferrule & Fitting Code | |||||
| # | Dash | mm | Inch | mm | mm | bar | psi | bar | psi | mm | kgs/m | m | Codigo | Codigo |
| 6-Spiral Wire Hydraulic Hose | SAE 100R15 | 06 | R15-06 | 9.5 | 3/8" | 9.3-10.1 | 23.3 MAX. | 420 | 6090 | 1680 | 24360 | 150 | 0.800 | 20/40 | รรรร3-รร-06 | 00621-06 |
| 6-Spiral Wire Hydraulic Hose | SAE 100R15 | 08 | R15-08 | 12.7 | 1/2" | 12.3-13.5 | 26.8 MAX. | 420 | 6090 | 1680 | 24360 | 200 | 0.900 | 20/40 | รรรร3-รร-08 | 00621-08 |
| 6-Spiral Wire Hydraulic Hose | SAE 100R15 | 12 | R15-12 | 19.1 | 3/4" | 18.6-19.8 | 36.1 MAX. | 420 | 6090 | 1680 | 24360 | 265 | 1.600 | 20/40 | รรรร3-รร-12 | 00621-12 |
| 6-Spiral Wire Hydraulic Hose | SAE 100R15 | 16 | R15-16 | 25.4 | 1" | 25.0-26.4 | 42.9 MAX. | 420 | 6090 | 1680 | 24360 | 330 | 2.250 | 20/40 | รรรร3-รร-16 | 00621-16 |
| 6-Spiral Wire Hydraulic Hose | SAE 100R15 | 20 | R15-20 | 31.8 | 1-1/4" | 31.4-33.0 | 51.5 MAX. | 420 | 6090 | 1680 | 24360 | 445 | 3.950 | 20/40 | รรรร3-รร-20 | 00621-20 |
| 6-Spiral Wire Hydraulic Hose | SAE 100R15 | 24 | R15-24 | 38.1 | 1-1/2" | 37.7-39.3 | 59.6 MAX. | 420 | 6090 | 1680 | 24360 | 530 | 5.250 | 20/40 | รรรร3-รร-24 | 00621-24 |
| 6-Spiral Wire Hydraulic Hose | SAE 100R15 | 32 | R15-32 | 50.8 | 2" | 50.4-52.0 | - | 420 | 6090 | 1680 | 24360 | - | 6.600 | 20/40 | รรรร3-รร-32 | 00621-32 |
Product Details
Our 6 Wire Hydraulic Hoses, available in SAE 100R13 6-Wire Spiral Hydraulic Hose and SAE 100R15 6-Wire Spiral Hydraulic Hose specifications, are designed for high-pressure hydraulic applications.
Constructed with high-strength synthetic rubber, these hoses offer exceptional durability and resistance to oils, fuels, and various atmospheric conditions.
The 6-layer steel wire spiral reinforcement ensures optimal performance and reliability in demanding environments.

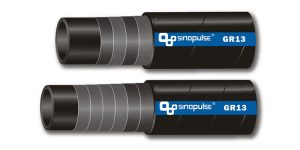

SAE 100R13 6 Wire Spiral Hydraulic Hose
| Part No. | I.D. | ย O.D. | W.P | B.P | B.R | W.T | |||
| Dash | Inch | mm | mm | MPa | PSI | MPa | PSI | mm | kg/m |
| SAE100R13-12 | 3/4โณ ID | 19.1 | 31.8 | 35.0 | 5075 | 140 | 20300 | 240 | 1.472 |
| SAE100R13-16 | 1โณ ID | 25.4 | 39.2 | 35.0 | 5075 | 140 | 20300 | 300 | 1.984 |
| SAE100R13-20 | 1.1/4โณ ID | 31.8 | 50.0 | 35.0 | 5075 | 140 | 20300 | 420 | 3.519 |
| SAE100R13-24 | 1.1/2โณ ID | 38.1 | 58.5 | 35.0 | 5075 | 140 | 20300 | 500 | 3.440 |
| SAE100R13-32 | 2โณ ID | 50.8 | 72.0 | 35.0 | 5075 | 140 | 20300 | 640 | 4.765 |
SAE 100R15 6-Wire Hydraulic Hose
| Part No. | I.D. | ย O.D. | W.P | B.P | B.R | W.T | |||
| Dash | Inch | mm | mm | MPa | PSI | MPa | PSI | mm | kg/m |
| SAE100R15-12 | 3/4โณ ID | 19.1 | 31.8 | 42.0 | 6090 | 168 | 24360 | 265 | 1.472 |
| SAE100R15-16 | 1โณ ID | 25.4 | 39.2 | 42.0 | 6090 | 168 | 24360 | 330 | 1.984 |
| SAE100R15-20 | 1.1/4โณ ID | 31.8 | 50.0 | 42.0 | 6090 | 168 | 24360 | 445 | 3.519 |
| SAE100R15-24 | 1.1/2โณ ID | 38.1 | 58.2 | 42.0 | 6090 | 168 | 24360 | 530 | 4.499 |
| SAE100R15-32 | 2โณ ID | 50.8 | 72.0 | 35.0 | 5075 | 140 | 20300 | 640 | 6.449 |
Our 6 Wire Hydraulic Hoses are engineered to meet the rigorous demands of various industries, ensuring maximum safety and performance. Trust our high-quality hoses for all your hydraulic needs.
Sinopulse is one of leading 6 wire hydraulic hose factories in China, we can suppy you quality and high pressure hoses for you , make sure your safety in any application.
For more information or to place an order, please contact us today!
What is Spiral Wire Hoses
A spiral hydraulic hose, or spiral hose, is a high-pressure hydraulic hose that is a critical component of hydraulic systems used in dozens of industries. Spiral hoses get their name from their reinforcement, which is made from multiple layers of metal wire (usually four or six layers) that are twisted together and stacked in alternating directions to create a "spiral" shape.
Of the two main types of rubber hydraulic hoses (braided hose and spiral hose), spiral hydraulic hose is the preferred choice for high-pressure applications and extreme conditions, and the additional rigidity of its spiral structure makes it a stronger and safer choice than the more flexible braided hydraulic hose. However, due to this rigidity, the bend radius of spiral hose is significantly smaller than that of braided hose.
Spiral hoses are reliable and rugged high-pressure hydraulic hoses that complete heavy-duty jobs safely and efficiently. They are popular in industries such as construction, mining, agriculture, highway maintenance, and any application that deals with high peak pressures and rigorous operating conditions. Spiral hydraulic hoses are versatile and popular. Because of this, there are many different categories, types, and sizes of spiral hoses, making it even more important to find the right hose and size for your operation
Differences Between Spiral Hose and Braided Hose
Construction
All hydraulic hoses have the same three layers: an inner tube made of different materials that determine which fluid type can be carried, a reinforcement layer, and an outer layer. The main difference between spiral and braided hydraulic hoses is the construction method used for the reinforcement layer.
For braided hoses, as the name implies, this layer consists of steel wires that alternately cross to form a braided layer. The manufacturing process is quite complex and requires the use of large braiding machines to form the braided layer on the extruded inner tube. In addition, it requires extensive quality inspection protocols to ensure that the braided layer does not split; otherwise, the thickness of the final product will be affected.
On the other hand, spiral hoses also have steel wires wrapped around the inner tube, but instead of being interlaced, they are arranged in parallel in a spiral shape. Manufacturing spiral hydraulic hoses is generally faster than braided hoses because the number of reinforcement layers is the same.
The construction method used gives each hydraulic hose different physical properties.
Flexibility
Braided hoses are more flexible than spiral hoses. This is because the interlocking pattern of the braid gives them a higher tensile strength. Spiral hydraulic hoses require additional layers of counter-helix to withstand the same pressures as braided hydraulic hoses, which increases their outer diameter and reduces their minimum bend radius. As a result, braided hydraulic hoses are ideal for applications that require the hose to be twisted in an unconventional position to be installed.
Durability
One area where spiral hoses outperform braided hoses is durability. In hydraulic systems where pressure changes occur frequently, the hoses tend to expand and contract to compensate for pressure spikes and drops. Over time, these changes can cause braided hoses to lose tensile strength as the tightness between them weakens. Additionally, the friction between the braids generates heat, which degrades the performance of the inner and outer tubes. Spiral braids tend to exhibit a higher resistance to pressure changes, making them more durable in the long run.
Uses
Most braided hoses are suitable for low- to medium-pressure applications, such as return lines, hydraulic lifts, and large engines. Spiral hoses are ideal for hydrostatic drives that operate at higher pressures and have rapid pressure changes. They are most commonly used in large, specialized heavy machinery, such as mining excavators and off-road dump trucks.
In North America, youโll find the most commonly used standard is the SAE standard, which specifies minimum structural requirements for hoses.
We ensure that our customers have access to the latest hydraulic hose technology and the best products on the market. SINOPULSE spiral hoses and high-pressure hydraulic hoses have pressure, temperature, and abrasion resistance that exceeds all industry standards, making them a reliable and lasting asset to your business. Learn more about spiral hoses or contact us today so we can find the perfect hydraulic hose for your operation!
