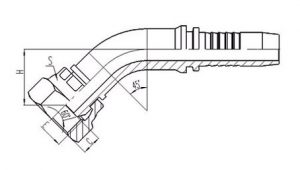

45°NPSM FEMALE 60°CONE (21641)
45°NPSM FEMALE 60°CONE (21641)
Material: carbon steel, stainless steel, brass;
Surface Treat: galvanize Yellow Zinc, Black Zinc, Cr6 free Zinc, and Nickel;
Application: widely used in the hydraulic and fluid conveying system of machinery, oilfield, mine, building, transportation, food, and other industries.
Products Specification:
E | HOSE BORE | DIMENSIONS | ||||
PART NO. | THREAD E | DN | DASH | C | S | H |
21641-04-04 | 1/4″X18 | 6 | 04 | 4.6 | 19 | 23 |
21641-06-06 | 3/8″X18 | 10 | 06 | 6 | 22 | 24.9 |
21641-08-08 | 1/2″X14 | 12 | 08 | 7.5 | 27 | 27.7 |
21641-12-12 | 3/4″X14 | 20 | 12 | 8.9 | 32 | 34 |
21641-16-16 | 1″ X11.5 | 25 | 16 | 10.5 | 41 | 35 |
21641-20-20 | 1.1/4″X11.5 | 32 | 20 | 11.2 | 50 | 39.3 |
21641-24-24 | 1.1/2″X11.5 | 38 | 24 | 11.2 | 55 | 44.4 |
21641-32-32 | 2″ X11.5 | 51 | 32 | 11.2 | 70 | 63.4 |
Note: 1. For use with braided hoses. 2. If used with spiral hoses, the hose fitting series number is 21642-xx-xx.
