JIS METRIC MALE 60° CONE SEAL (18611)
JIS METRIC MALE 60° CONE SEAL (18611)
Material: carbon steel, stainless steel, brass;
Surface Treat: galvanize Yellow Zinc, Black Zinc, Cr6 free Zinc, and Nickel;
Application: widely used in the hydraulic and fluid conveying system of machinery, oilfield, mine, building, transportation, food, and other industries.
Products Specification:

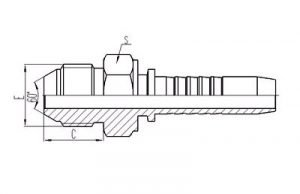

E | HOSE BORE | DIMENSIONS | |||
PART NO. | THREAD E | DN | DASH | C | S |
18611-14-04 | M14X1.5 | 6 | 04 | 17 | 17 |
18611-14-06 | M14X1.5 | 10 | 06 | 17 | 17 |
18611-16-04 | M16X1.5 | 6 | 04 | 18 | 17 |
18611-16-06 | M16X1.5 | 10 | 06 | 18 | 17 |
18611-18-06 | M18X1.5 | 10 | 06 | 18 | 19 |
18611-20-08 | M20X1.5 | 12 | 08 | 20 | 22 |
18611-22-08 | M22X1.5 | 12 | 08 | 20 | 24 |
18611-24-10 | M24X1.5 | 16 | 10 | 21.5 | 27 |
18611-30-12 | M30X1.5 | 20 | 12 | 26 | 32 |
18611-33-16 | M33X1.5 | 25 | 16 | 30 | 36 |
18611-36-20 | M36X1.5 | 32 | 20 | 33 | 38 |
18611-42-24 | M42X1.5 | 40 | 24 | 36 | 46 |
Note:1.For use with braided hoses. 2. If use with spiral hoses, the hose fitting series number is 18612-XX-XX
