SAE J1401 Hydraulic Brake Hose
SAE J1401 is a standard for hydraulic brake hose assemblies used for automotive brake systems. It specifies requirements for hydraulic brake hose assemblies made of a synthetic rubber tube and reinforced with one or more textile braids for use with nonpetroleum-base brake fluids. The standard covers hose assemblies with an inside diameter of 3.2 mm (1/8 in) up to 10.3 mm (3/8 in). It also specifies the performance requirements and test methods for the hose assemblies.

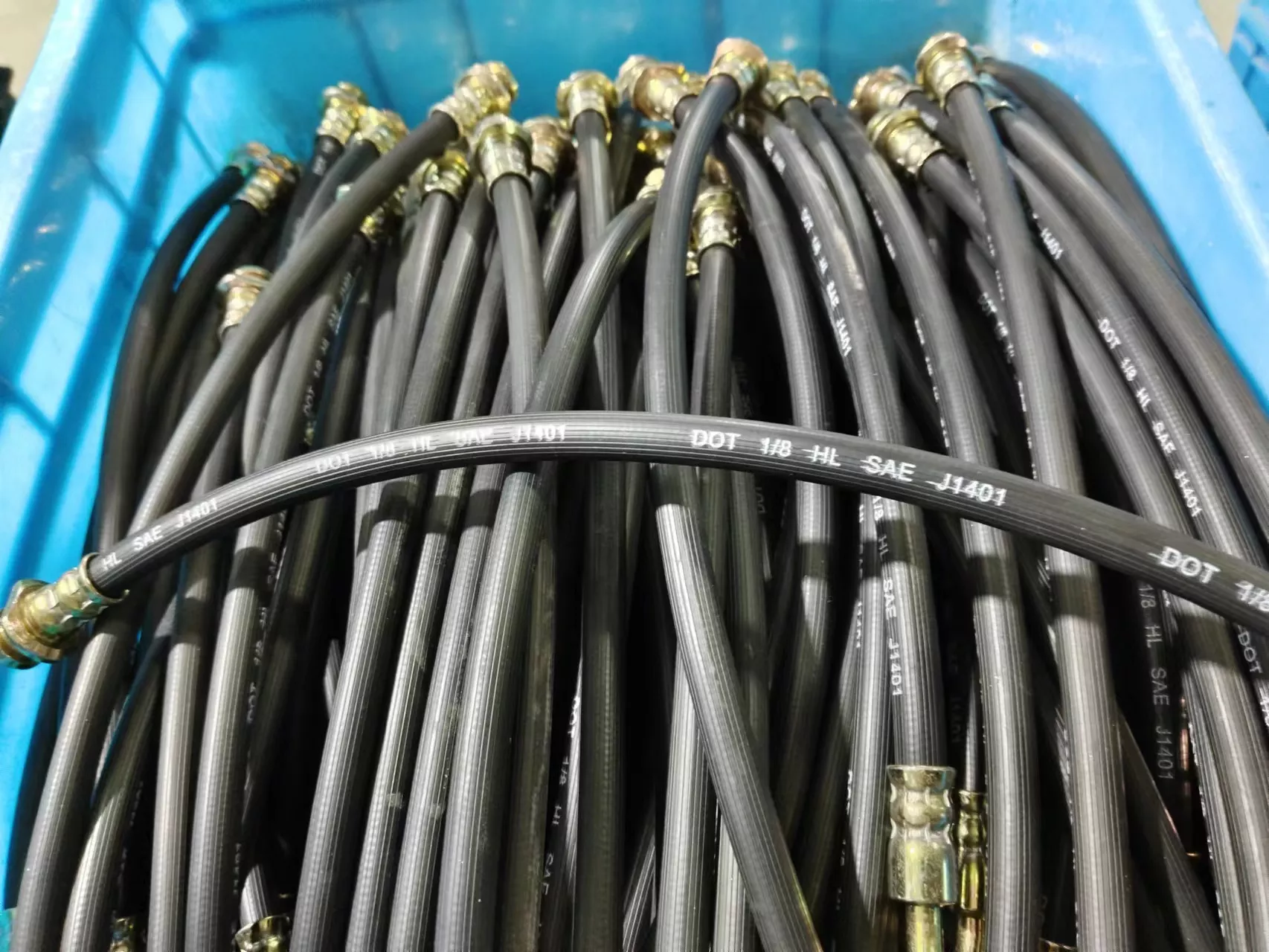

SAE J1401 hydraulic brake hose, also known as Oil break hose, is designed for pressure transmission for auto, truck, and trailer hydraulic pressure brake systems. The hose is produced with high-quality braided polyester or nylon materials.
SAE J1401 brake hose comprises three parts: inner rubber layer, middle rubber layer, and steel wire braid layer.
The inner rubber layer is made of special rubber material, which is resistant to high temperatures and has good oil resistance.
The middle rubber layer is a textile braid in PVA,
the steel wire braid layer is a protective cover of EPDM rubber
Detail

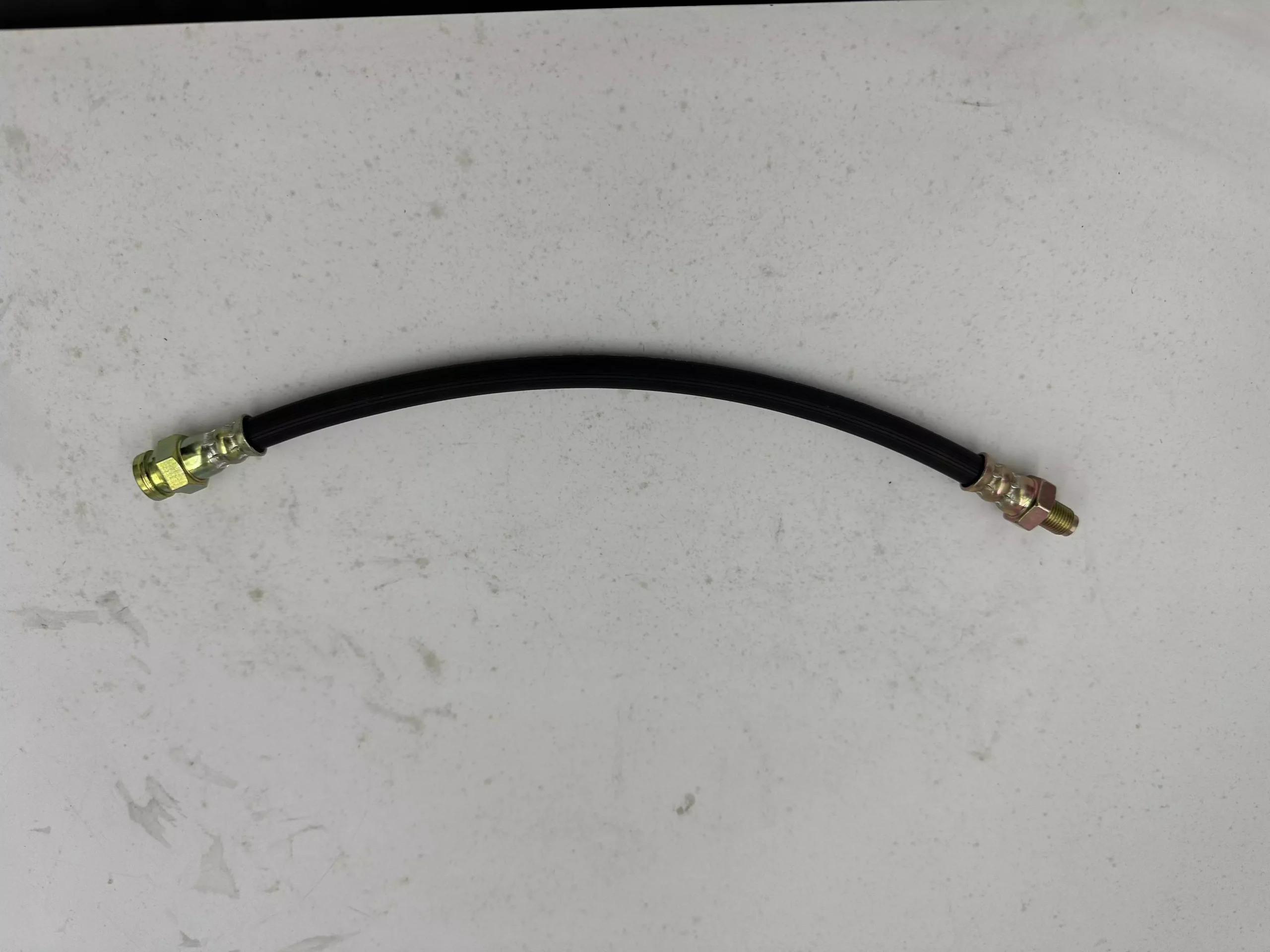

Name: SAE J1401 Brake Hose
Internal hose: EPDM with synthetic rubber, the extruded whole without joints, of uniform thickness
Reinforcement: High tensile PE/PVA for the first, high tensile PVA for the second Layer;
Covering: EPDM with synthetic rubber, the extruded whole without joints, of uniform thickness
Certification: CE, MSHA, and ISO approved
Size:1/8”~2”
Reinforcement: four or six spirals of high tensile steel wire
Temperature Range:-40℃~+120℃ (-40°F~- +248°F)
Working Pressure:276 Bar / 4002 PSI
Standard: SAE J1401 / GB16897-2010
Media: Hydraulic brake hose acts as a pressure transmission for the automotive hydraulic brake system. Used for cars, motorcycles, light trucks, and other light heavy-duty vehicles for the hydraulic brake systems.
Application: High-pressure hydraulic oil lines are used in construction, machine tool, and agricultural applications using petroleum or water-based hydraulic fluids.
Technical Specifications:
Size | I.D. (inch) | I.D. (mm) | O.D (mm) | Wall(mm) | Expansion 6.9mpa | Expansion 10.3mpa | B.P. Min Mpa |
3.2 | 1/8″ | 3.2±0.1 | 10.5±0.2 | 3.65 | <1.08 | <1.38 | >80 |
4.8 | 3/16″ | 4.8±0.2 | 13±0.3 | 4.35 | <1.81 | <2.36 | >60 |
6.3 | 1/4″ | 6.3±0.2 | 15±0.3 | 3.75 | <2.69 | <3.84 | >50 |
